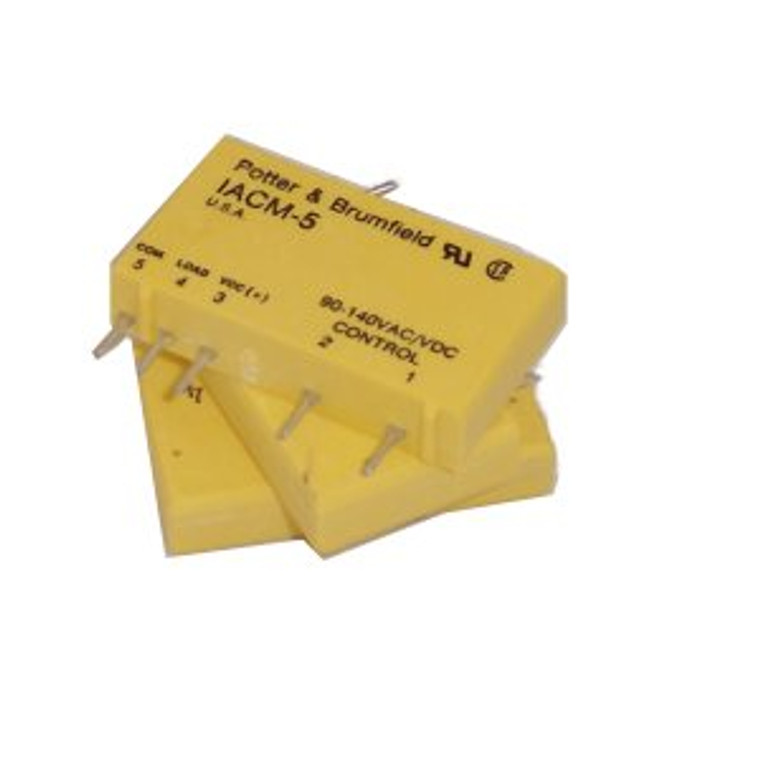

Solid State Slim Input Module| Choose Model| IACM5

SKU:
001846
$8.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 or above and get 12% off
(No reviews yet)
Current Stock:
11

Input modules are used for sensing ON/OFF voltage levels.
Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures.


Industry standard package and pin-out.

Color coded by function.

4,000V rms optical isolation.

High immunity to false operation.

Series compatible.

Output modules can be controlled from sinking or sourcing logic.

Compatible with 2IO series mounting boards



Engineering Data (all I/O modules)

Switch Form: 1 Form A (SPST-NO)

Duty: Continuous.

Isolation: 4,000V rms, 60 Hz.

Capacitance: 8 pF Typical (input to output).

Operating Temperature: -30 deg C to +80 deg C.

Storage Temperature: -40 deg C to +85 deg C.





Potting Compound Flammability: UL94V-0.

IACM5



Product Type =

Input/Output Module

Termination Type =

Printed Circuit Terminals

Housing Style =

Slim Line

Comment =

Minimum Output Current >0 A

Current Rating (Amps.) =

0.05

Logic Voltage (VDC) =

5

Input Voltage Typical (VAC [VDC]) =

120 [120]

Output Voltage, Max. (V) =

30

Output Current, Min. (Amps.) =

0

Series =

IACM

Case Color =

Yellow

Relay Type =

Solid State Input/Output Module

Switch Arrangement =

1 Form A (SPST- NO)

Output Switching =

Random

Output Type =

DC

Mounting Options =

Board Mount

Approved Standards =

UL Recognized, CSA Certified

Coupling =

Optical

Approx. Dimensions (L x W x H) (mm [in]) =

43.20 x 10.20 x 25.40 [1.702 x .401 x 1.000]
