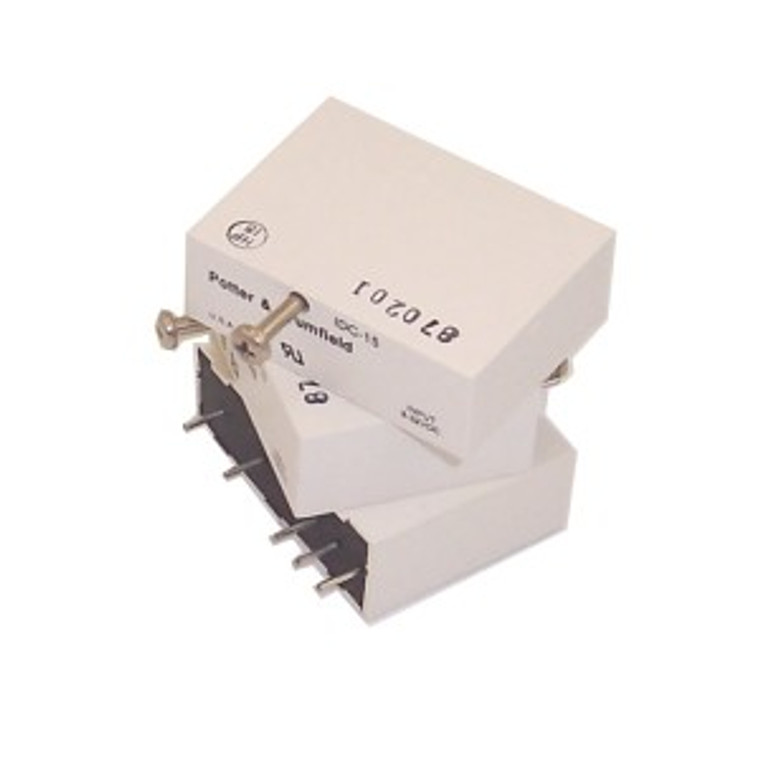

Solid State Input Module| Choose Model| IDC15

SKU:
001844
|
UPC:
0799632703952
$7.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 or above and get 12% off
(No reviews yet)
Current Stock:
25

Input modules are used for sensing ON/OFF voltage levels. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures.




Industry standard package and pin-out.

Color coded by function.

4,000V rms optical isolation.

High immunity to false operation.

Series compatible.

Output modules can be controlled from sinking or sourcing logic.

Compatible with 2IO series mounting boards



Engineering Data (all I/O modules)

Switch Form: 1 Form A (SPST-NO)

Duty: Continuous.

Isolation: 4,000V rms, 60 Hz.

Capacitance: 8 pF Typical (input to output).

Operating Temperature: -30deg.C to +80deg.C.

Storage Temperature: -40deg.C to +85deg.C.

Potting Compound Flammability: UL94V-0.




IDC15

DC input module - white case

input 10-32VDC

output 15vdc

nominal output current 10 madc
