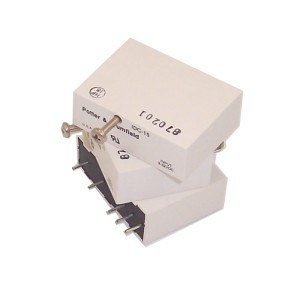

Solid State Input Module| Choose Model| IAC5A
Input modules are used for sensing ON/OFF voltage levels. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures.
Industry standard package and pin-out.
Color coded by function.
4,000V rms optical isolation.
High immunity to false operation.
Series compatible.
Output modules can be controlled from sinking or sourcing logic.
Compatible with 2IO series mounting boards
Engineering Data (all I/O modules)
Switch Form: 1 Form A (SPST-NO)
Duty: Continuous.
Isolation: 4,000V rms, 60 Hz.
Capacitance: 8 pF Typical (input to output).
Operating Temperature: -30deg.C to +80deg.C.
Storage Temperature: -40deg.C to +85deg.C.
Potting Compound Flammability: UL94V-0.
IAC-5A
AC input module - yellow case
240VAC/VDC input (180-280VAC/VDC)
5VDC logic output
