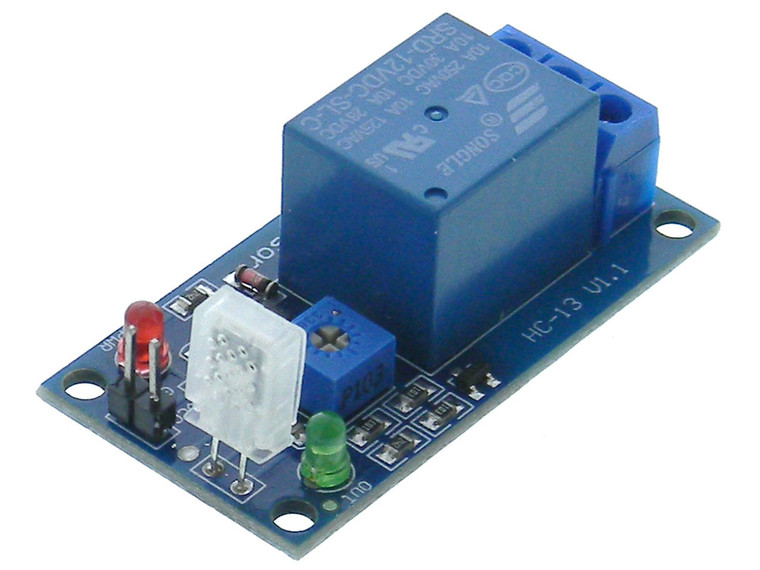

12VDC Humidity Sensitive SPDT Relay Module

12VDC Humidity Sensitive SPDT Relay Module

SKU:
025528
$3.95
(No reviews yet)
Current Stock:
46
Adding to cart… The item has been added
Description

12VDC Humidity Sensitive SPDT Relay Module

Additional Notes:
* Adjustable Humidity detector control module.
* Power: 12VDC @ ~10mA Idle/<50mA Activated
* Power: 0.1" Pitch Header Pins
* Relay: Terminal Strip
* When the threshold is reached (Humidity >Setting), the relay is energized, the Common terminal is connected to the Normally Open terminal. When Humidity is lower than the threshold, the relay is de-energized, and the Common terminal is connected to the Normally Closed terminal
* Indicators: Red LED; Power On
* Green LED: Relay energized
* Relay: SPDT
* Rated: 10A @ 250VAC/30VDC.
* Dimensions (LxWxH): 1-15/16" x 1" x 3/4" (50mm x 26mm x 19mm)

Click to open PDF

MPJA
37995 MI
