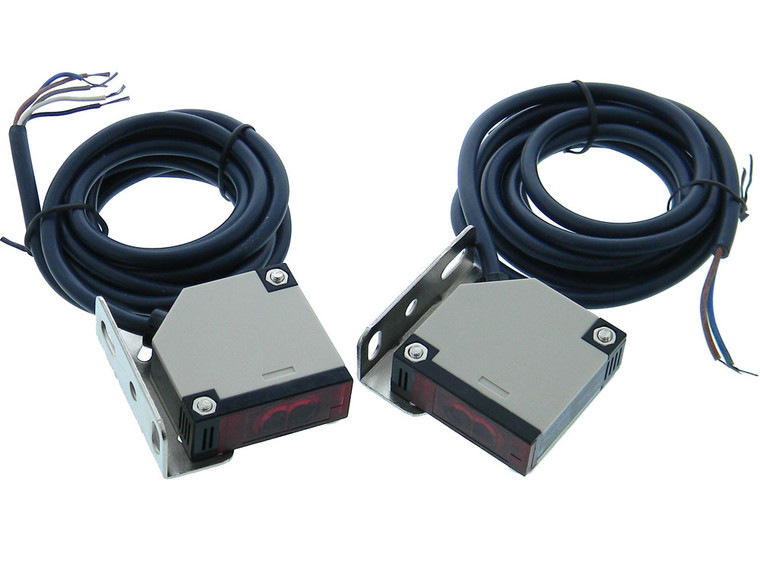

Thru Beam Type Opto Interrupter Sensor 12VDC - SPDT Relay

Thru Beam Type Opto Interrupter Sensor 12VDC - SPDT Relay

SKU:
025670
$12.95
(No reviews yet)
Current Stock:
2
Adding to cart… The item has been added
Description

Thru Beam Type Opto Interrupter Sensor 12VDC - SPDT Relay

Additional Notes:
* Small General-purpose Photoelectric Sensor.
* "Dark" NO Contact ON (Beam Blocked)
* Infrared (660nM) Thru-beam Photo Electric Sensor and I/R Source
* Power: 12VDC @ ~2W
* Range: 5m ± 10% max
* Response Time: (ON OFF): 30ms max
* Turn ON Delay: ~1.5ms
* Operating Temperature: -25°C to 55°C,
* Operating Humidity: 45% to 85% (No icing or condensation)
* Contact Form: SPDT
* Rated: 3A / 250VAC
* Leads: ~1.9M
* Includes Mounting Hardware
* Dimensions (LxWxD): 59mm x 50mm x 18mm
