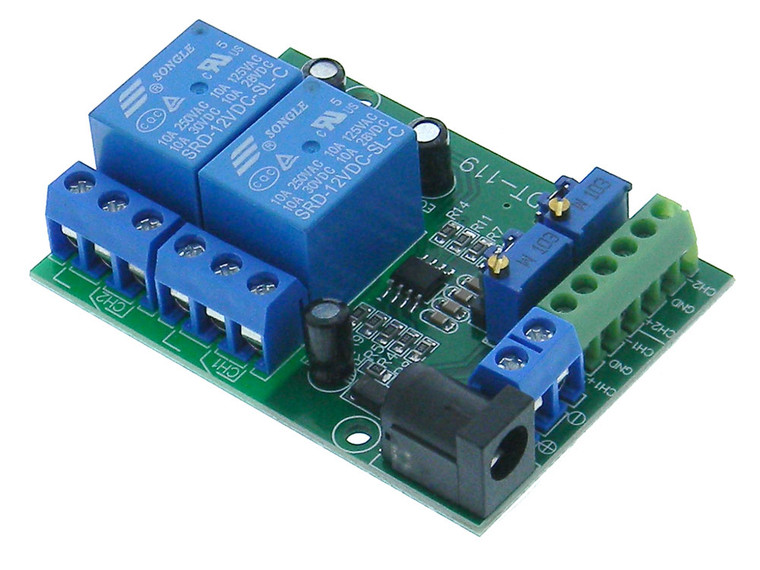

Dual Voltage Comparator Module With SPDT Relays 12 Volt

Additional Notes:
* Dual precision Voltage Module. Each independant channel compares an input to an onboard adjustable voltage reference or an external reference.
* 3 Jumper Selectable Functions:
       1: When the input voltage is Greater than the Internal reference voltage, the relay is energized..
       2: When the input voltage is Greater than the External reference voltage, the relay is closed.
       3: When the input voltage is Less than the Internal reference voltage, the relay is closed.
* Power: 12 Volt DC @~ 55mA
* Connection:
* Power: 5.5/2.1mm Coaxial Jack or Terminal Strip.
* Input & Relay Contacts: Terminal Strips
* Relay: SPDT 10 Amp @ 250/125 Volt AC/30 Volt DC
* Dimensions (LxWxH): 2-1/2" x 1-3/4" x 3/4" (63mm x 45mm x 20mm)
