Variable Frequency / Pulse Width Generator Module
UNK
$10.95
(No reviews yet)
Write a Review
UNK

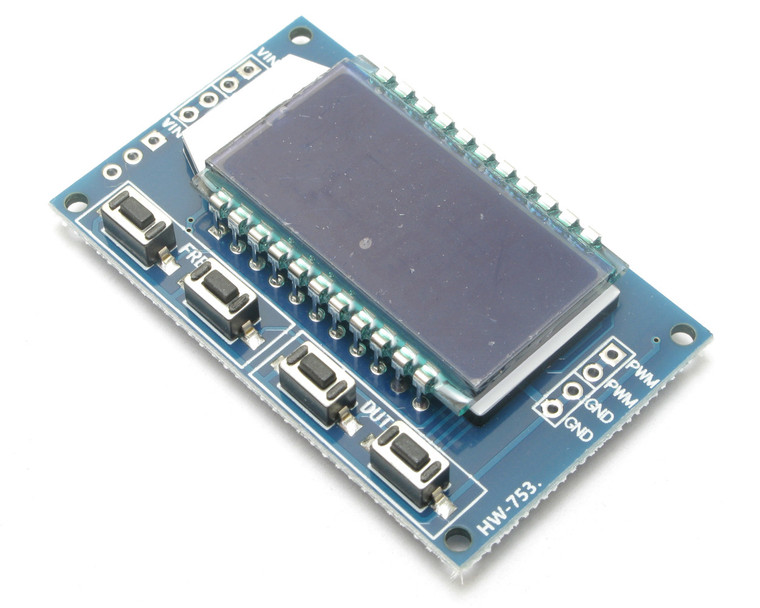

Variable Frequency / Pulse Width Generator Module
Variable Frequency / Pulse Width Generator Module
Product Details:
Operating Voltage Range: 3.3 ~ 30 Volt DC
Auto Save Prevents Setting Loss Due to Power Failure
Simple Source of Test Pulses
Module Has Backlit LCD Display (Blue with White Characters)
LCD Display of Frequency and Duty Cycle, Very Clear and Easy to Adjust
Four Push Button Switches Used to Set the Frequency and Duty Cycle
Short Press for Single Unit Increase or Decrease
Long Press for Rapid Increase or Decrease
Frequency Range: 1 Hz ~ 150 KHz; Auto Switching
Connections: 0.1" Pitch Solder Pads
Duty Cycle ~0 - 99 Percent
Accuracy: ~ 2 Percent (Each Range)
Max Output Current: <30ma
Output Voltage: ~Vcc
Dimension: 2.063" (L) x 1.25" (W) x 0.375" (T)
UNK
HW-753
Product Details:
Operating Voltage Range: 3.3 ~ 30 Volt DC
Auto Save Prevents Setting Loss Due to Power Failure
Simple Source of Test Pulses
Module Has Backlit LCD Display (Blue with White Characters)
LCD Display of Frequency and Duty Cycle, Very Clear and Easy to Adjust
Four Push Button Switches Used to Set the Frequency and Duty Cycle
Short Press for Single Unit Increase or Decrease
Long Press for Rapid Increase or Decrease
Frequency Range: 1 Hz ~ 150 KHz; Auto Switching
Connections: 0.1" Pitch Solder Pads
Duty Cycle ~0 - 99 Percent
Accuracy: ~ 2 Percent (Each Range)
Max Output Current: <30ma
Output Voltage: ~Vcc
Dimension: 2.063" (L) x 1.25" (W) x 0.375" (T)
UNK
HW-753
