Adjustable Pulse Generator Board for Arduino

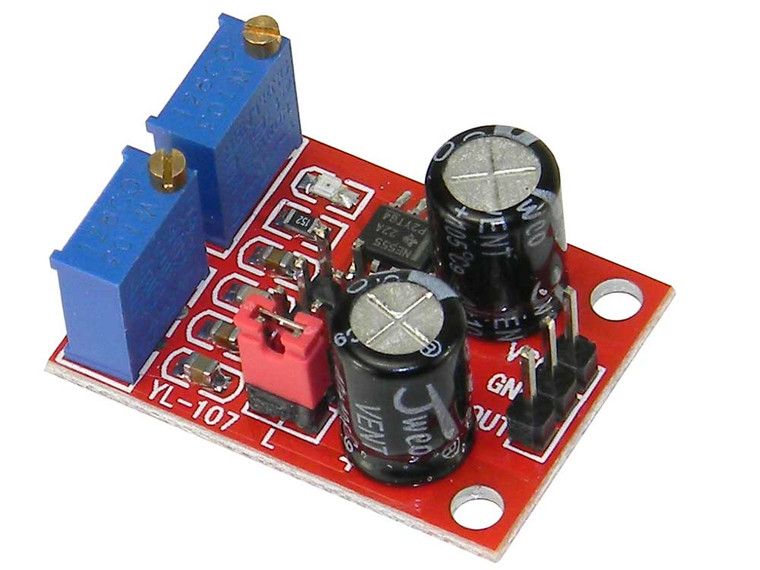

Adjustable Pulse Generator Board For Arduino

Condition:
* New Surplus Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Compact PC board Pulse Generator utilizing the 555 IC. Features: 5-15 Volt DC Input Power, 15mA output drive @ 5 Volt DC; 35mA @ 12 Volt Power.
* 4 Jumper Selectable Frequency Ranges: 1 Hz-50 Hz, 50-1 KHz, 1 KHz-10 KHz & 10 KHz-200 KHz.
* Controls For Frequency Adjust & Duty Cycle. 3 Pin I/O Header.
* Note: Freq. & Duty Cycle Interact With Each Other.
* L: 1-1/4” x W: 7/8” x H: 9/16”

MPJA
31070
