Variable Frequency/Width Pulse Generator

Variable Frequency/Width Pulse Generator

Condition:
* New surplus stock, in OEM packaging. As pictured.

Additional Notes:

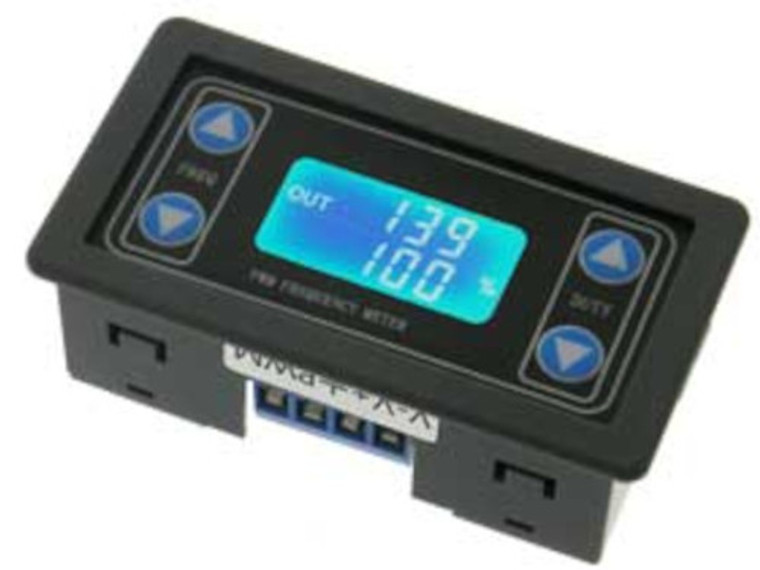

* Snap-in Variable frequency & Pulse Width Generator module with back lit LCD Display.
* Simple source of test pulses.
* 4 P B switches used to set the Frequency and Duty Cycle,
* Short press for single unit increase or decrease
* Long press for rapid increase or decrease
* Auto save prevents setting loss due to power fail.
* Power: 3.3 ~ 30V;
* Frequency range: 1Hz ~ 150KHz; auto switching
* A: 1-999Hz Resolution 1Hz (Display 123) no decimal)
* B: 1KHz-9.99KHz Resolution 10Hz ( Display 1.23)
* C: 10KHz-99.9KHz Resolution 100Hz (Display 12.3)
* D: 100KHz-~150KHz Resolution 1KHz (Display 1.2.3)
* Duty Cycle ~0-99%
* Accuracy: ~ 2%;
* Max Output Current: <30ma;
* Output Voltage: ~Vcc (Input V)
* Ambient temperature: -20 ~ +50 "C"
* Cutout: 74mm X 40mm
* W: 80mm H: 43mm D: 27mm
