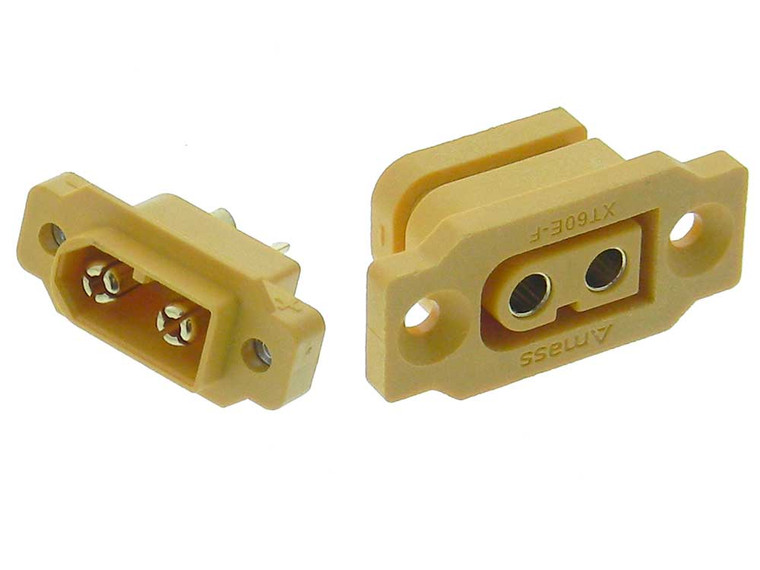

Pair Chassis Mount XT60HE Male & Female Connectors

Pair Chassis Mount XT60HE Male & Female Connectors

SKU:
025320
$1.95
(No reviews yet)
Current Stock:
150
Adding to cart… The item has been added
Description

Pair Chassis Mount XT60HE Male & Female Connectors

Additional Notes:
* Chassis mount 60A Power Connectors for RC Models..
* 1 each Amass Style XT60HE-M (male) & -F (Female) connector.
* Pins: Gold Plated Brass
* Body: PA nylon (polyamide)
* Continuous Current: 30A Max
* Instantaneous Current: 60A
* Max Voltage: 500V
* Initial Resistance: ~.55m Ohms
* Connections: Solder Cup
* Wire: 12AWG
* Operating Temp: -20°C to 120°C
* Includes Mounting Screws
* Male: W: 27.1mm H: 12.1mm D: 16.7mm WT:
* Female: W: 35.0mm H: 15.8mm D: 20.1mm
