AM1015E - Male & Female Mating Pair, 25A. Battery "T" Connectors for RC Models

SKU:
025693
$1.49
(No reviews yet)
Current Stock:
17
Adding to cart… The item has been added

AM1015E - Male & Female Mating Pair, 25A. Battery "T" Connectors for RC Models

Additional Notes:

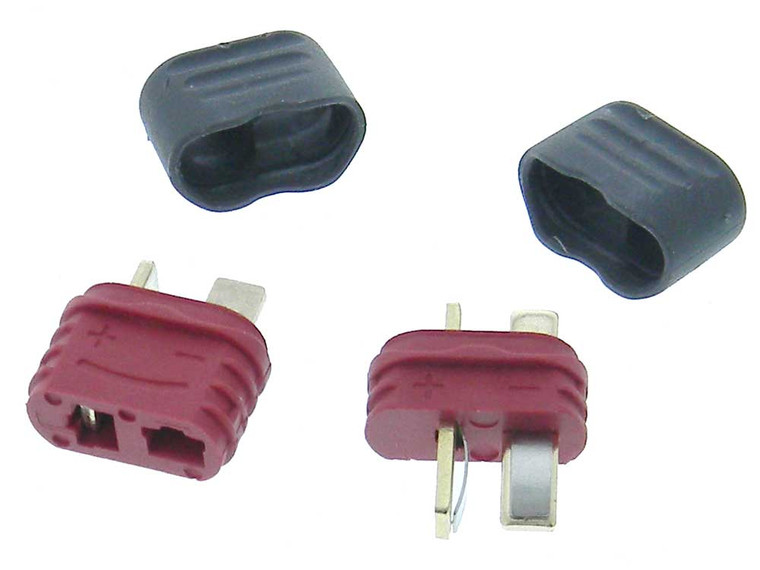

* Mating Pair of AM1015E Power "T" Connectors for RC Models.
* Amass Style AM Male & Mating Female connectors with snap on sheath (backshell) for the wire side of the connector.
* Pins: Gold Plated Brass
* Pitch: ~8.2mm
* Body: PA nylon (polyamide)
* Continuous Current: 25 Amps Max
* Instantaneous Current: 50 Amps
* Max Voltage: 500V
* Initial Resistance: ~45m Ohm
* Connections: Solder Cup
* Wire: 16AWG
* Operating Temp: -20°C to 120°C
* Female & Backshell Dimensions (LxWxD): 19.3mm x 16.6mm x 9.3mm
* Male & Backshell Dimensions (LxWxD): 23.2mm x 16.6mm x 9.3mm
