Battery Alarm and Monitor
Battery Alarm and Monitor
Additional Notes:

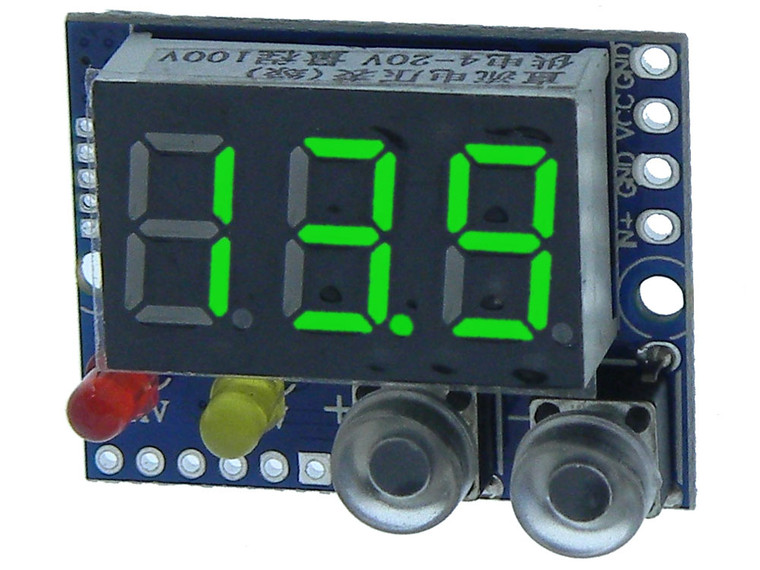

* 2 or 3 Wire Battery Monitor/Alarm Module with Adjustable Under & Over Voltage Alarm points.
* 2 Wire Common Power & Sense (Measurment) Input or 3 wire separate Power/Measurement Inputs.
* Note: When using Two wires, the measurement range and power supply range are the same, DO NOT exceed 30V Power/Measurement Input. When you need to measure a voltage that exceeds 30V: Use Three wires!
* Supply Voltage: 4-30V
* Measuring Range: 0-100V
* Upper/Lower Limit Range: 0.1-99.9V
* Upper/Lower Limit Alarm Output: Selectable High or Low level,
* Resolution: 0.1V
* Refresh Rate: 300mS
* Operating Temperature: -40°C to +85°C
* Input reverse polarity protection: YES
* L: 29mm (1-3/16”) W: 23mm (15/16”) H: 10mm (7/16”)
