Universal Battery Charge Monitor with Temperature
$8.95
(No reviews yet)
Write a Review

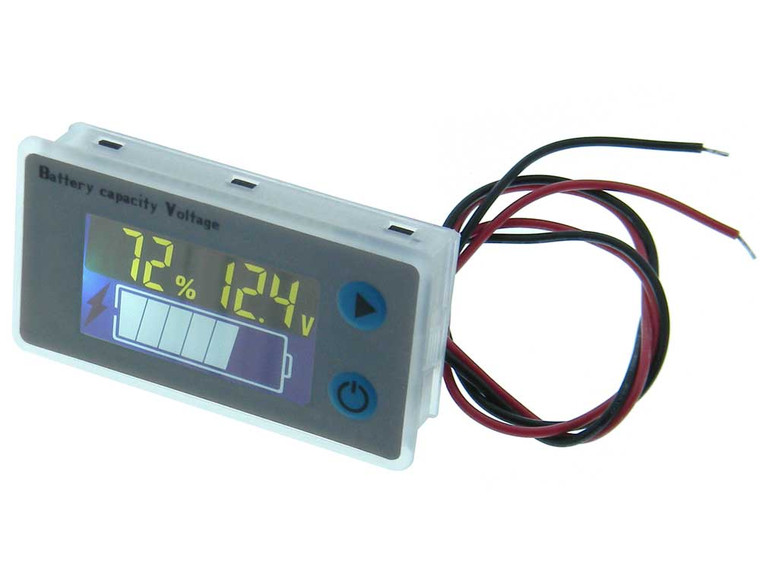

Universal Battery Charge Monitor with Temperature
Universal Battery Charge Monitor with Temperature
Additional Notes:
* Snap-in universal battery monitor with color backlit LCD screen.
* Dustproof, water resistant front surface.
* Displays: Voltage, % & 7 segment graphic
* (Button select of Voltage or Ambient Temperature)
* Selectable modes for lead-acid, lithium-ion batteries, lithium iron phosphate & metal hydride batteries
* NOTE: The default setting is for 12V lead acid batteries.
* Displays the percentage of remaining battery power,voltage & local temperature value ("C").
* Input: 10~100V DC
* Power:5-6mA (LED ON)
* Power Down after ~10 sec.
* Sleep Power: 6-12uA
* Voltage Accuracy:±0.1(Typical),±0.5(Max)
* Temperature Accuracy: ±0.5(Typical),±1(Max) "C"
* Battery Low Power: Red Flashing "Lightning Bolt"
* Operating Temperature Range:-10~55 "C"
* Cutout: 58.5mm*28.5mm
* W: 2-7/16" H: 1-5/16" D: 3/4"
