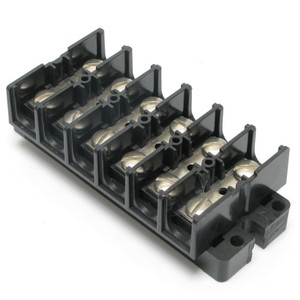

6 Position Terminal / Barrier Strip 600 Volt, Marathon 1706
Marathon
$5.95
(No reviews yet)
Write a Review
Marathon
6 Position Terminal / Barrier Strip 600 Volt, Marathon 1706
6 Position Terminal / Barrier Strip 600 Volt, Marathon 1706
Product Details:
Marathon 1700 Series
Heavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)
Base, General Purpose Phenolic, 125 Degree C (UL RTI)
Connector, Brass, Nickel Plated
Phil-Slot Screws, Brass, Nickel Plated, 10-32
Current rated up to 30 Amps with unprepared wire, #10-18 AWG Copper
Current rated up to 75 Amps when wired with crimp type ring, spade or fork terminal
5/8 Inch (0.625) Line To Line Spacing
UL Recognized File No. XCFR2.E62806
CSA Certified File No. LR19766
RoHS Compliant
Dimensions: 4-1/2" (L) x 2" (W) x 1-1/4" (H)
Marathon
1706 SC
Product Details:
Marathon 1700 Series
Heavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)
Base, General Purpose Phenolic, 125 Degree C (UL RTI)
Connector, Brass, Nickel Plated
Phil-Slot Screws, Brass, Nickel Plated, 10-32
Current rated up to 30 Amps with unprepared wire, #10-18 AWG Copper
Current rated up to 75 Amps when wired with crimp type ring, spade or fork terminal
5/8 Inch (0.625) Line To Line Spacing
UL Recognized File No. XCFR2.E62806
CSA Certified File No. LR19766
RoHS Compliant
Dimensions: 4-1/2" (L) x 2" (W) x 1-1/4" (H)
Marathon
1706 SC
