6 Position Terminal / Barrier Strip

6 Position Terminal / Barrier Strip

UNK
SKU:
001178
$5.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 10% off
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
5.00 (in)
Current Stock:
100
Adding to cart… The item has been added
Description

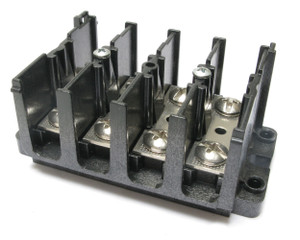

6 Position Terminal Strip with Optional Short Circuiting Bar

Heavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)
Base, Thermoplastic, 125 Degree C
Slot Screws, Brass, Nickel Plated, 10-32
Current rated up to 30 Amps with unprepared wire, #10-22 AWG Copper
Current rated up to 75 Amps when wired with crimp type ring, spade or fork terminal
5/8" (.625") Line To Line Spacing
UL Recognized CSA Certified
Dimensions: 4-1/2" (L) x 2" (W) x 1-1/4" (H)
Marathon Style

Marathon
1706SC
