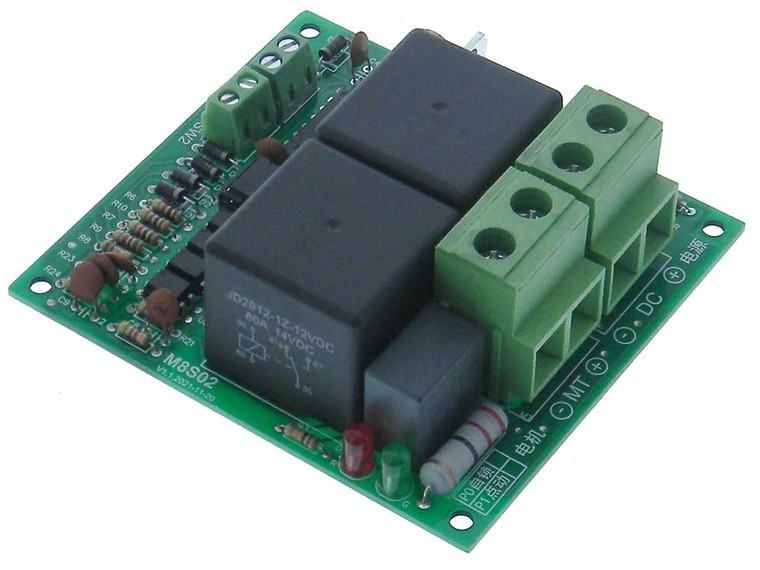

500 W - 12VDC Motor Reversing Control - Continuous Mode
$19.95
(No reviews yet)
Write a Review
500 W - 12VDC Motor Reversing Control - Continuous Mode
500 W - 12VDC Motor Reversing Control - Continuous Mode
Additional Notes:
* Reversing Control board for DC Motors.
* Mode: Continous - Motor starts and runs Continuous whenever K1 or K2 Pushbutton switch signal is applied (Forward or Reverse). SW1 or SW2 will stop respective Forward/Reverse (useful input for Limit switches).
* Opposite Direction Input will change the direction of rotation after ~.3sec.
* Voltage: 12VDC
* Current: 80 Amps max (Surge)
* Power: 500W max (40A)
* Control Signals: Low level input signal (0V or GND)
* Operating Temperature: -40° to 80°C
* Humidity: 10% to 90%RH
* Dimensions (LxWxH): 90mm x 82mm x 34mm (3-1/2" x 3-1/4" x 1-3/8")
