240 Watt - 6-30 Volt DC Motor Reversing Control - Continuous Mode

Additional Notes:

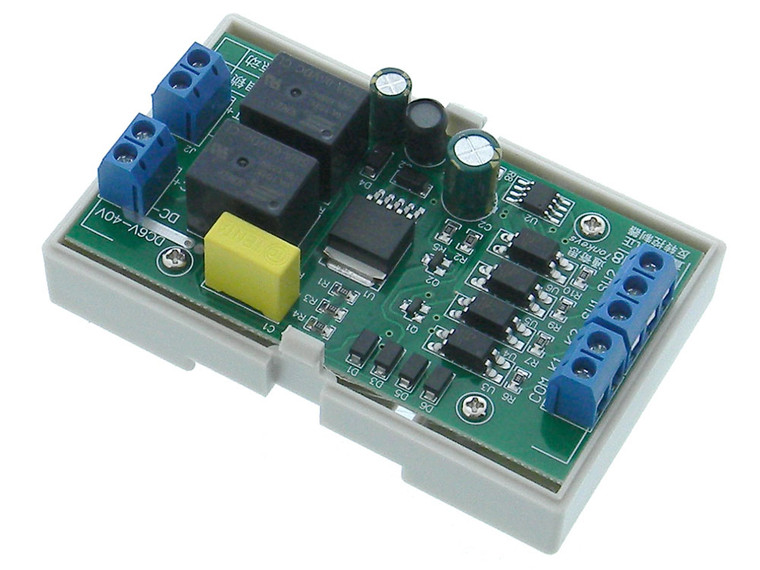

* DC Motor Reversing Control board in a DIN Rail mount Case.
* Mode: Normal - Motor starts and runs Continous whenever K1 or K2 Pushbutton switch signal is applied (Forward or Reverse).
* SW1 or SW2 Will Stop Respective Forward/Reverse (Useful Input For Limit Switches).
* Opposite Direction Input Will Change The Direction of Rotation After ~0.3 Seconds
* Voltage: 6-30 Volt DC (12-24 Volt Recommened)
* Output Voltage is Same as Input
* Current: 20 Amps Max (Surge)
* Power: 240 Watt Max (20 Amp @ 12 Volt DC/10 Amp @ 24 Volt DC)
* Control Signals: Low level Input Signal (0V or GND)
* Operating Temperature: -40° To 80°C
* Humidity: 10%~90% Relative Humidity
* Dimensions (LxWxH): 92mm x 54mm x 60mm (3-5/8" x 2-1/8" x 2-3/8")
