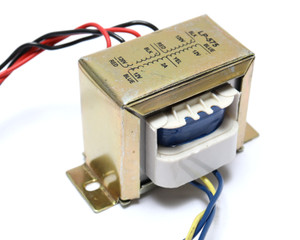

24 VCT Transformer 4 Amp, 96 Watt - 120/220 VAC
Input: 110/220VAC 60Hz
Primary Connections 120 VAC:
Connect the 2 black wires together and connect the 2 red wires together and apply power to each pair.
Primary Connections 220 VAC:
Connect the inner black & red wires together and apply power to the outer black & red wires
Secondary Connections: Blue Wires: 24 VAC, Center-tap: Yellow
Rated Current: 4 amps output.
Chassis mount transformer with 6� wire leads for connections.
Dimensions: (L) 2-5/8" (3-15/16" with mount flanges) x (W) 3" x (H) 2-3/8"
Okura
LP-580
