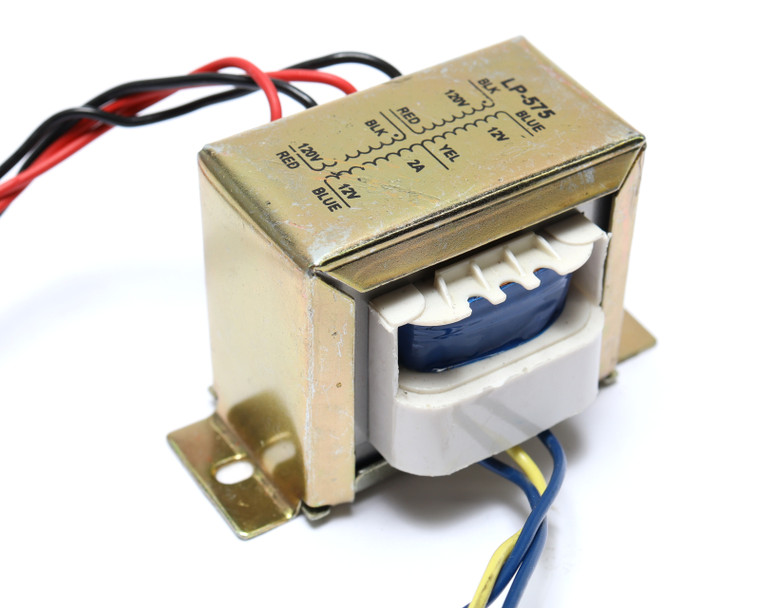

24 VCT Transformer 2 Amp - 120/220 VAC
Okura
$17.95
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 - 49 and get 12% off
- Buy 50 - 99 and get 15% off
- Buy 100 or above and get 20% off
24 VCT Transformer 2 Amp, 48 Watt - 120/220 VAC
Input: 110/220VAC 60Hz
Primary Connections 120 VAC:
Connect the 2 black wires together and connect the 2 red wires together and apply power to each pair.
Primary Connections 220 VAC:
Connect the inner black & red wires together and apply power to the outer black & red wires
Secondary Connections: Blue Wires: 24 VAC, Center-tap: Yellow
Rated Current: 2 amps output.
Chassis mount transformer with 6� wire leads for connections.
Dimensions: (L) 2-3/8" (3-1/4" with mount flanges) x (W) 2-1/8" x (H) 2"
Okura
LP-575
