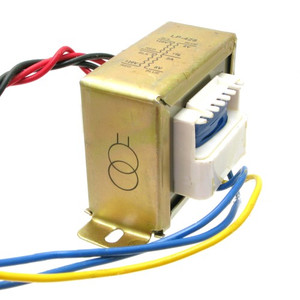

12 VCT Transformer 4 Amp - 120/220 VAC

SKU:
008148
$19.95
(No reviews yet)
Current Stock:
8

12 VCT Transformer 4 Amp, 48 Watt - 120/220 VAC

Input: 110/220VAC 60Hz

Primary Connections 120 VAC:
Connect the 2 black wires together and connect the 2 red wires together and apply power to each pair.
Primary Connections 220 VAC:
Connect the inner black & red wires together and apply power to the outer black & red wires

Secondary Connections: Blue Wires: 12 VAC, Center-tap: Yellow
Rated Current: 4 amps output.

Chassis mount transformer with 6� wire leads for connections.

Dimensions: (L) 2-11/16" (3-7/8" with mount flanges) x (W) 2-1/2" x (H) 2-1/4"

Okura

LP-430
