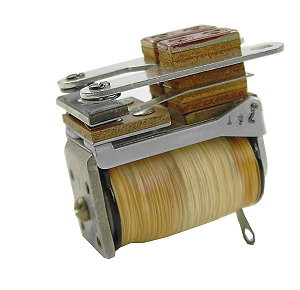

12VDC Sensitive Relay SPDT
Potter Brumfield
$3.50
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 or above and get 12% off
(No reviews yet)
Write a Review
Potter Brumfield
12VDC Sensitive Relay SPDT
General Purpose Sensitive Relay
Coil Voltage: 12VDC
Coil Resistance: 5.0K Ohms
Contacts: Single Pole, Double Throw
Current: 3 Amps
Mounting: Plug-In
Operating Function: Single Side Stable
Termination: Solder Terminals
Acutating System: DC
Approvals: UL Recognized, CSA Certified
Overal Dimensions: Approx 1.166" x 0.736" x 1.189" (29.6mm x 18.7mm x 30.20mm)
Coil Suppresion Diode: Without
Contact Material: Silver
Wiring Diagram: 1 Form C
Coil Rating: Super Sensitive
Potter & Brumfield
R10S-E1-Y1-J5.0K 1.4mA
Coil Voltage: 12VDC
Coil Resistance: 5.0K Ohms
Contacts: Single Pole, Double Throw
Current: 3 Amps
Mounting: Plug-In
Operating Function: Single Side Stable
Termination: Solder Terminals
Acutating System: DC
Approvals: UL Recognized, CSA Certified
Overal Dimensions: Approx 1.166" x 0.736" x 1.189" (29.6mm x 18.7mm x 30.20mm)
Coil Suppresion Diode: Without
Contact Material: Silver
Wiring Diagram: 1 Form C
Coil Rating: Super Sensitive
Potter & Brumfield
R10S-E1-Y1-J5.0K 1.4mA
