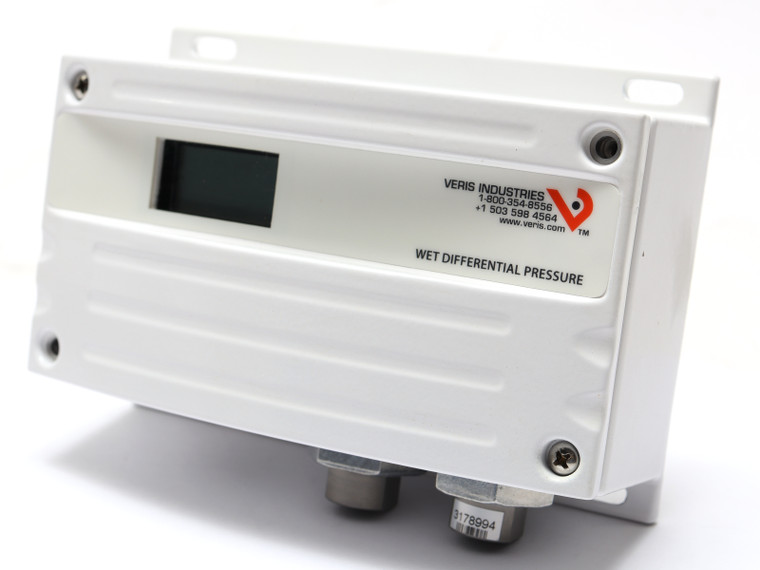

Veris PW2LX03S Wet Differential Pressure Sensor

Veris PW2LX03S Wet Differential Pressure Sensor

Condition:
* New surplus stock, no OEM packaging. As pictured.

Additional Notes:
* Application Zone: Plant Room
* Application: Pump and Compressor Differential Pressure | Chiller Differential Pressure * Monitoring
* Burst Pressure: 250 psi (17 bar)
* Calibration Certificate: No
* Dimensions (DxHxW): 2.2" x 4" x 5.8" (56mm x 102mmx 147mm)
* Display Size: 0.7" x 1.4" (17 mm x 36 mm)
* Display Type: LCD
* Electrical Wiring: 2-wires (loop-powered)
* Enclosure Material: Powder Coated Aluminium
* Fitting Material: Stainless Steel
* Fitting Size: 1/ 8” NPT
* Fitting Type: Female
* IP Protection: IP65 (NEMA 4)
* Measurement Type: Differential Pressure
* Medium: Water
* Model: PW2LX03S
* Mounting: Panel
* Operating Current: 29 mA
* Operating Humidity: 0 - 90% RH, non-condensing
* Operating Temperature: 14 - 130 °F (-10 - 55 °C)
* Output Specifications: 4 - 20 mA
* Outputs: Analog output
* Pressure Measurement Accuracy: Range A, B and C: ±1% of F.S. Range D: ±2% of F.S.
* Pressure Measurement Range: 0 - 5 psi (0 - 0.3 bar) | 0 - 10 psi (0 - 0.7 bar) | 0 - 25 psi (0 - 1.7 bar) | 0 - 50 psi (0 - 3.5 bar)
* Product Certification: CE
* Product Type: Sensor
* Range: PW2
* Standards EMC: EN 61000-6-1
* Supply Voltage DC Range: 12 - 24 VDC

Veris
PW2LX03S
