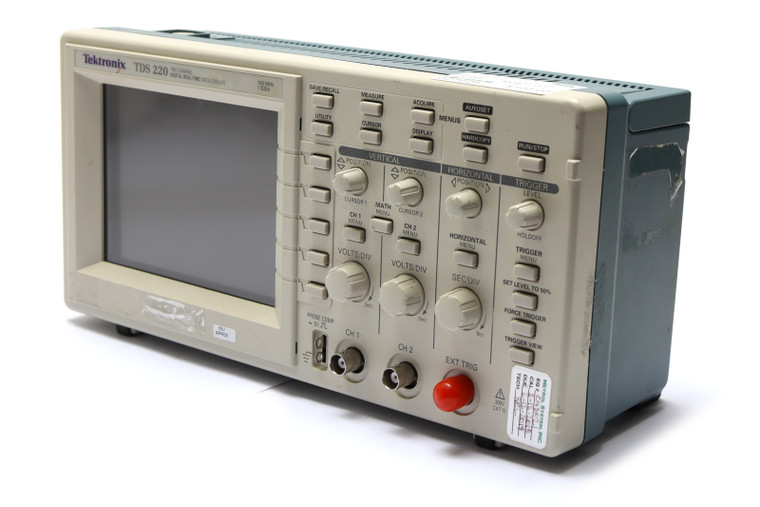

Tektronix TDS220 2-Channel Digital Oscilloscope

Tektronix TDS220 2-Channel Digital Oscilloscope

Condition:
* Used, removed from service in working order.
* Powers up and passes self-test. Channel 2 trace is slightly off
* Sold as-is.

Additional Notes:
* Bandwidth: 100 MHz (20 MHz at 2 mV/Div and 5 mV/Div, 20 MHz at 10 mV/Div in Peak Detect mode)
* Sampling rate: 1 GS/s
* Sweep: 5 ns/Div to 5 s/Div
* Record Length: 2,500 sample points per channel
* Deflection: 2 mV/Div to 5 V/Div, 1-2-5
* Resolution: 8 bit (256 levels over 10.24 vertical divisions)
* Automatic Measurements: Period, frequency, cycle RMS, mean, peak-to-peak
* Acquisition Modes: Sample, Average, Peak Detect - High frequency and random glitch capture
* Waveform Storage: Two 2,500 point reference waveforms
* Setups: 5 front panel setups
* Cursors (Voltage, time) - measure Delta T, 1/Delta T, Delta V
* Waveform Processing: Arithmetic Operators Add, subtract
* Single button automatic setup on selected input signal for vertical, horizontal and trigger systems
* Backlit monochrome LCD with adjustable multilevel contrast
* Persistence: Off, 1 sec, 2 sec, 5 sec, infinite
* Probes: P2100 1X, 10X 7MHz, 100MHz
* X-Y mode

Tektronix
TDS220
SNB058567
