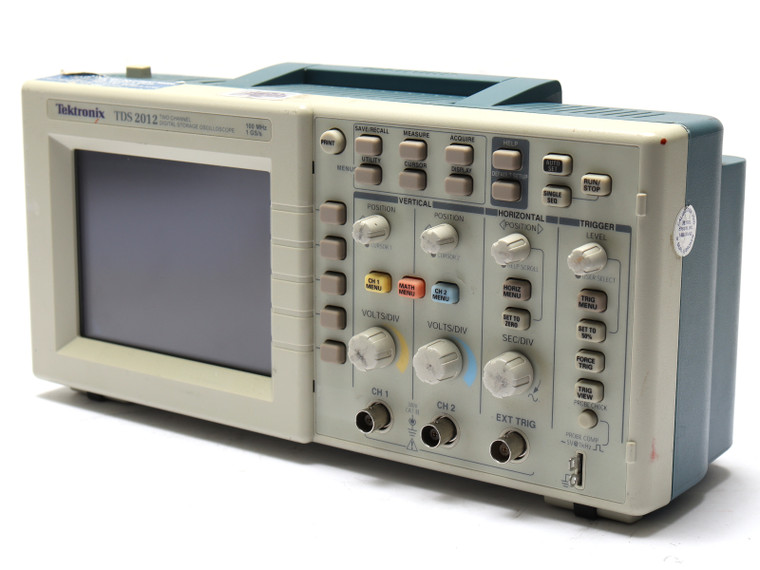

Tektronix TDS2012 Dual-Channel Digital Oscilloscope, 100MHz

Tektronix TDS2012 Dual-Channel Digital Oscilloscope, 100MHz

Condition:
* Used, Appears to function. Passes self-test. Sold as-is.
* Has small spot (dead pixels)in bottom left of the screen.
* Two minor cracks: one near power button, and one near the top right corner (as viewed from front). See photos
* As pictured.

Additional Notes:
* Bandwidth: 100 MHz (20 MHz at 2 mV/div)
* Vertical Sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
* Timebase: 5 ns to 50 s/div
* Sample Rate: 1.0 GS/s on each channel
* Record Length: 2.5 K points
* Automatic Waveform Measurements: Period, Frequency, +Width, -Width, Rise Time, Fall Time, Max, Min, Peak-to-Peak, Mean, Cycle RMS
* Waveform Processing: Operators (Add, Subtract, FFT); FFT (Windows: Hanning, Flat Top, Rectangular; 2048 sample points; Autoset Menu (Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems with undo autoset)
* Autoset Menu: Square Wave (Single-cycle, Multi-cycle, Rising or Falling Edge); Sine Wave (Single-cycle, Multi-cycle, FFT Spectrum); Video (NTSC, PAL, SECAM) Field: All, Odd or Even Line:All or Selective Line Number

Tektronix
TDS2012
