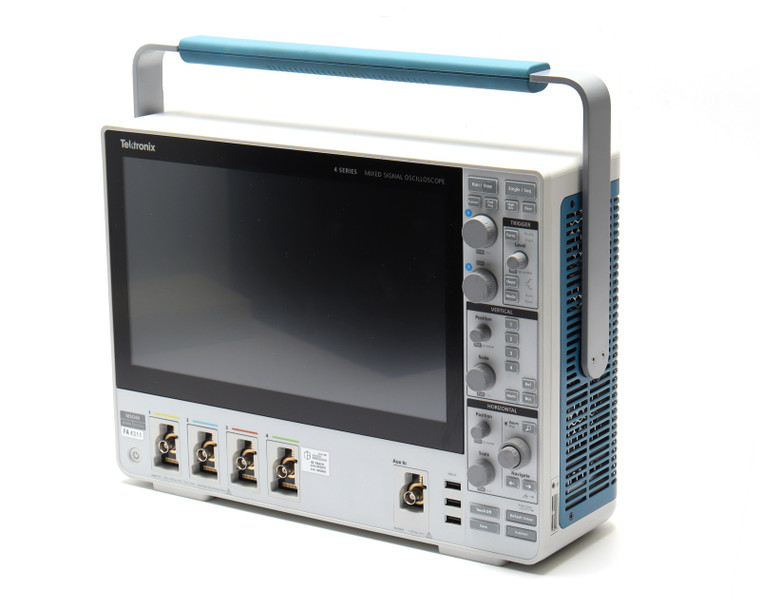

Tektronix MSO44 Mixed Signal Oscilloscope, 200MHz

Tektronix MSO44 Mixed Signal Oscilloscope, 200MHz

Tektronix
SKU:
027641
$7,494.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Tektronix MSO44 Mixed Signal Oscilloscope, 200MHz

Condition:
* Used, passes self test. Unable to fully test.
* Sold as-is. As pictured.

Additional Notes:
* Number of Inpout Channels: 4 BNC
* Input Coupling: DC, AC
* Input Resistanece Selection: 1 MΩ or 50 Ω
* Input Impedance 1 MΩ DC Coupled: 1 MΩ ±1%
* Input Capacitance 1 MΩ DC Coupled, Typical: 13 pF ±1.5pF
* Input Impedance 50 Ω, DC Coupled: 50 Ω ±1% (VSWR ≤1.5:1, typical)
* Maximum Input Voltage, 1 MΩ:
       • 300 VRMS at the BNC
       • Derate at 20 dB/decade between 4.5 MHz and 45 MHz; derate 14 dB/decade between 45 MHz and 450 MHz. Above 450 MHz, 5.5 VRMS
       • Maximum peak input voltage at the BNC: ±425 V
* Maximum input voltage, 50 Ω: 5 VRMS, with peaks ≤ ±20 V (DF ≤6.25%)

Tektronix
MSO44
