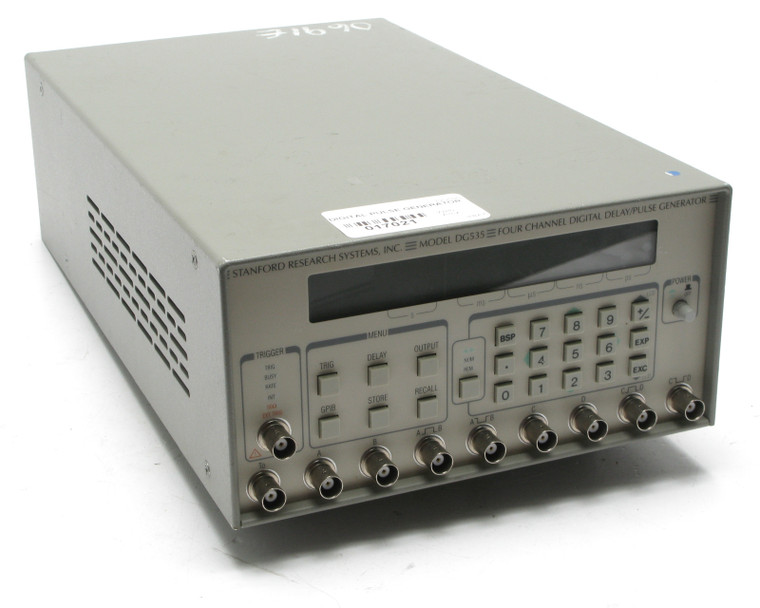

Stanford Research Systems DG535 4-channel Digital Delay/Pulse Generator
Sanford Research Systems
$895.00
Stanford Research Systems DG535, 4-Channel Digital Delay/Pulse Generator
Condition:
* Powers Up And Puts Out Signal; Appears To Function.
* Unable To Fully Test.
* Sold As-Is.
Additional Notes:
* Channels: Four Independent Delay Outputs
* Range: 0 to 999.999,999,999,995 Seconds
* Resolution: 5 ps
* Accuracy: 1500 ps + Timebase Error × Delay
* Timebase:
• Standard: 25 ppm Crystal Oscillator
• Optional: 1 ppm TCXO (opt. 03)
• External: 10.0 MHz Reference Input
* RMS Jitter: <100 ps + (10-8 × Delay)
* Trigger Delay (Typ.): 85 ns (ext. Trigger to T0 Output)
* Output Impedance: 50 Ω or High Impedance
Stanford Research Systems
DG535
