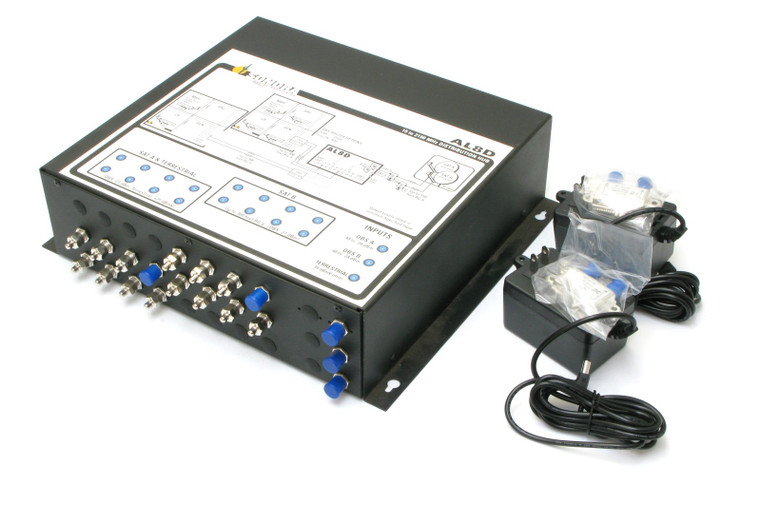

Sonora AL8D 15-2150MHz Dual Distribution Hub w/2x HRPI-18 Power Inserters

Sonora AL8D 15-2150MHz Dual Distribution Hub w/2x HRPI-18 Power Inserters

Condition:
* New, old stock. Never put into service. Missing OEM packaging. As pictured.

Additional Notes:
* Dual Hubs amplify (2) stacked DBS satellite signals and diplex terrestrial signals on dual drop cables to apartments within garden style or high rise buildings.
* Automatic DBS Gain Control guarantees a constant output over a wide input.
* Dual Hubs feed subscriber electronics that may be located at the hub or within the apartment.

Features:
* Turnkey DBS Overlay: DirecTV or DishPro
* Applications: Garden Stle or High Rise Buildings
* Stacked Wideband Distribution: 15 to 2,150MHz; sub-band return
* Automatic Gain Control: Constant output, wide input
* Wide Input Window: Dish to Hub - up to 150ft RG-6
* High Output: Hub to Apartment: up to 250ft RG-6
* Receiver Powered for simplified installation
* 2x HRPI18 power inserters for  LNB powering

Specifications:
* Passband Flatness, any 24MHz band:
     • Typical: 0.1dB
     • QC Limit: 0.2dB
* Input Return Loss:
     • Typical: 13dB
     • QC Limit: 10dB
* Output Return Loss:
     • Typical: 13dB
     • QC Limit: 10dB
* DBS Input Window: -48 to -28 dBm
* Drop Capacity: 8 pairs of drops
* DBS Output Level:
     • 950MHz: -33 dBm
     • 2150MHz: -27dBm
* Terrestrial Input: +39 dBmV (suggested)
* Terrestrial Outputs @39 dBmV: 8 @ 24 dBmV
* Hub Power: Receiver Powered or HRPI-18 included
* LNB Power: includes (2) HRPI-18 power inserters
* Current usage: 400mA
* Indoor Use Only
* Ambient Temperature: 32°F to 122°F (0°C to 50°C)

Sonora
AL8D / HRPI-18
