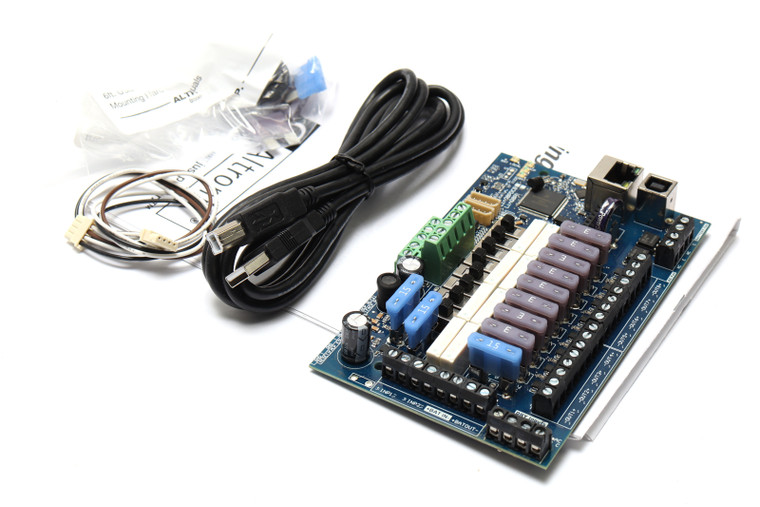

Altronix LINQ8PD Networkable Power Distribution Module

Altronix LINQ8PD Networkable Power Distribution Module

Altronix
SKU:
026437
|
UPC:
0782239953714
$79.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Altronix LINQ8PD Networkable Power Distribution Module

Condition:
* New surplus stock, in OEM packaging. As pictured.

Additional Notes:
Input Power
* Input1/Input2: 12VAC-28VAC @ 12.5A each or 12VDC/28VDC @ 12.5A each.
* Note: Do not connect AC and DC simultaneously to INP1 and INP2.
Outputs
* Eight (8) fused outputs rated 3A.
* Power output(s) can be locally or remotely controlled.
* Surge Suppression.
Status Monitoring
* Power Supply(ies) output voltage and load.
* Voltage and load of each output.
* FACP trigger and reset status.
* Unit temperature (Celsius).
* Power Supply AC and Battery status.
* Battery health.
Programming Features
* Power Supply(ies) voltage and load limits (High/Low).
* FACP trigger type (wet or dry-N.O./N.C.).
* Input Function (FACP reset/tamper).
* Output Reset Trigger (N.O./N.C.).
* Battery Monitor Configuration: Battery condition (Low/Normal/Missing), Service Date
* Configurable Output Relay(s).
* Individual Output Configuration:
      • Device ID
      • Voltage and Current Limits (High/Low)
      • FACP Trigger Setting (latching/non-latching/inactive)
      • Battery Backup.
* Network Security: Secure Socket Layer (SSL)
* Reporting: E-mail notifications, Event Log tracks history
* Fire Alarm Interface: Supervised FACP disconnect (Latching or Non-Latching), FACP reset (N.C. or N.O.)
* Operating temperature: - 20° to 49° C ( - 4° to 120.2° F).
* Storage temperature: - 30° C to 70° C ( - 22° to 158° F).

Altronix
LINQ8PD
