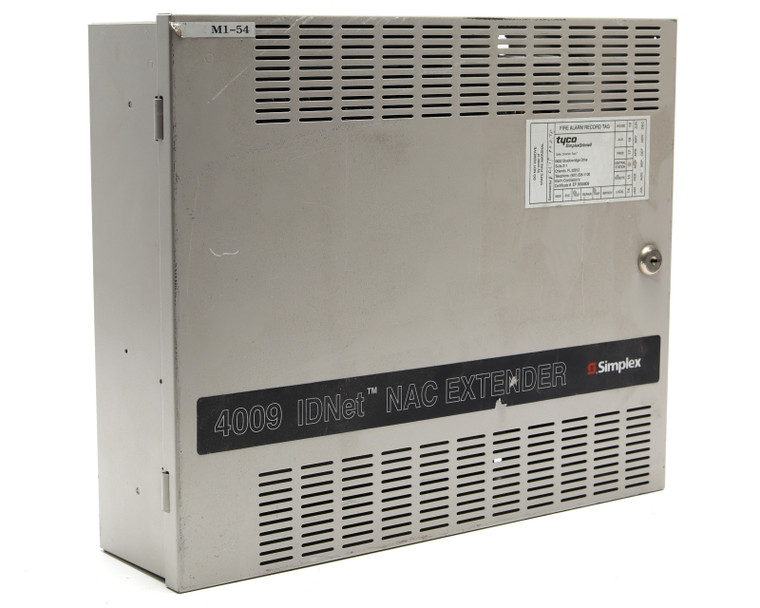

Simplex 4009-9201 IDNet NAC Extender

Simplex 4009-9201 IDNet NAC Extender

Condition:
* Used, removed from service in working condition.
* Sold as-is. As pictured.

Additional Notes:
* Rated 2 A each for conventional reverse polarity 24 VDC notification appliances and providing multiple operation modes.
* Can be selected to provide synchronization for Simplex visible notification strobe flashes.
* Capable of controlling TrueAlert non-addressable notification appliances operating with SmartSync two-wire control mode.
* Provides status monitoring and individual NAC control using a single address per 4009 IDNet NAC Extender
* Supports IDNet “Device Level” earth fault location
* Charges internal batteries up to 12.7 Ah or up to 18 Ah batteries in
external cabinet
* Provides status monitoring of battery, input power, and earth faults
* Rated 8 A for “Special Application” appliances; including 4901, 4903,
4904, and 4906 Series horns, strobes, horn/strobes, and speaker/
strobes
* Rated 6 A for “Regulated 24 DC” appliance power

Simplex
4009-9201
