Simplex 4090-9002 IDNet Individual Addressable Relay Module

Simplex 4090-9002 IDNet Individual Addressable Relay Module

Simplex
SKU:
018835
Availability:
$34.95
(No reviews yet)
Current Stock:
2
Adding to cart… The item has been added
Description

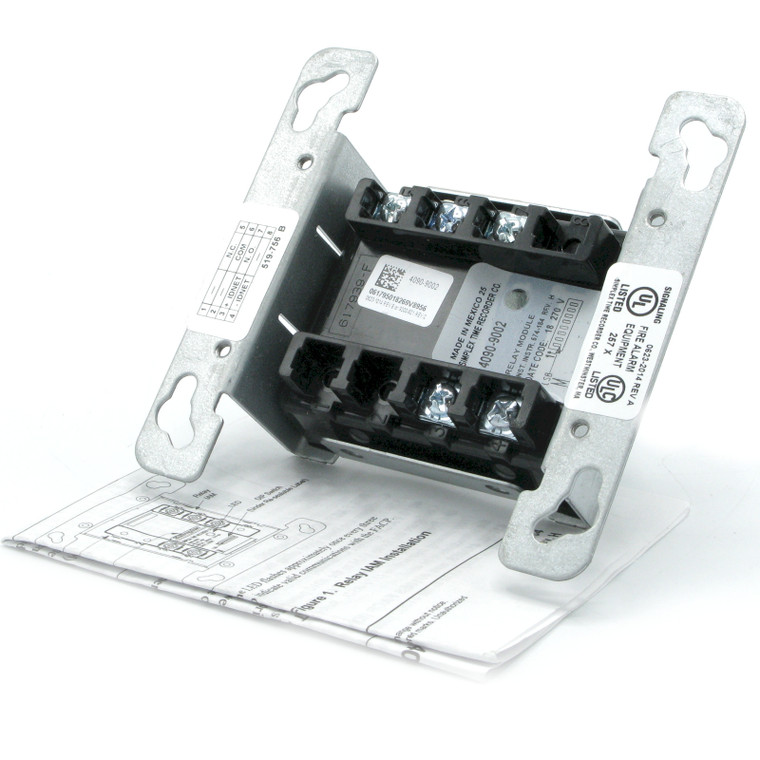

Simplex 4090-9002, IDNet Individual Addressable Relay Module

Condition:
* New Stock, No OEM Packaging. As Pictured.

Additional Notes:
* IDNet addressable control for use with Simplex® fire alarm control panel models 4007ES, 4008, 4010, 4010ES, 4100ES, and 4100U
* A single addressable point provides control and status tracking of a Form “C” contact
* Low power latching relay design allows IDNet communications to supply both data and module power
* Relay is set to OFF on initial power up and upon loss of IDNet communications
* Enclosed design minimizes dust infiltration
* Mounts in standard 4” (102 mm) square electrical box, optional adapter bracket is available to mount in a 4 11⁄16” (119 mm) square electrical box (not included)
* Screw terminals for wiring connections
* Visible LED flashes to indicate communications
* Optional covers are available to allow LED to be viewed after installation
* Communications: IDNet Communications, 1 Address Per Device
* Relay IAM Power: Supplied By IDNet Communications
* Contact Type: Form C, SPDT
* Contacting Ratings:
     • Power-Limited: 2 Amp @ 24 Volt DC, Resistive / 1 Amp @ 24 Volt DC, Inductive
     • Nonpower-Limited: 0.5 Amp @ 120 Volt AC, Resistive
* Not Rated For Incandescent Switching

Simplex
4090-9002
