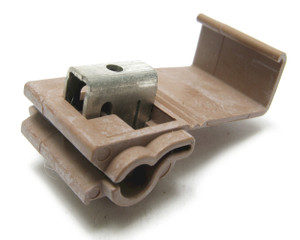

Self-Stripping Electrical Tap Connectors, 100 Piece
3M
$14.95
(No reviews yet)
Write a Review
3M
Self-Stripping Electrical Tap Connectors, 100 Piece
Self-Stripping Electrical Tap Connectors, 100 Piece
Product Details
Quanity: 100 Piece
Wire Range:
Tap: 18-14 AWG (.75-1.5 mm2)
Run: 12-10 AWG (4.0 mm2)
Solid or Stranded Copper Conductors
For Use With Common Thermoplastic Insulated Wires Such As:
T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT
With a Maximum Insulation Diameter of: Tap 0.145 Inches, Run 0.190 Inches
Maximum Recommended Current for General Purpose Applications:
Tap: 18 Awg - 7 Amps, 16 Awg - 10 Amps, 14 Awg - 15 Amps
Run: 12 Awg - 20 Amps, 10 Awg - 25 Amps
Construction:
U-contact - Tin Plated Brass, 0.03 Inch Thick
Insulator - Polypropylene
Color - Brown
UL Listed
3M Scotchlok
567-100
Product Details
Quanity: 100 Piece
Wire Range:
Tap: 18-14 AWG (.75-1.5 mm2)
Run: 12-10 AWG (4.0 mm2)
Solid or Stranded Copper Conductors
For Use With Common Thermoplastic Insulated Wires Such As:
T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT
With a Maximum Insulation Diameter of: Tap 0.145 Inches, Run 0.190 Inches
Maximum Recommended Current for General Purpose Applications:
Tap: 18 Awg - 7 Amps, 16 Awg - 10 Amps, 14 Awg - 15 Amps
Run: 12 Awg - 20 Amps, 10 Awg - 25 Amps
Construction:
U-contact - Tin Plated Brass, 0.03 Inch Thick
Insulator - Polypropylene
Color - Brown
UL Listed
3M Scotchlok
567-100
