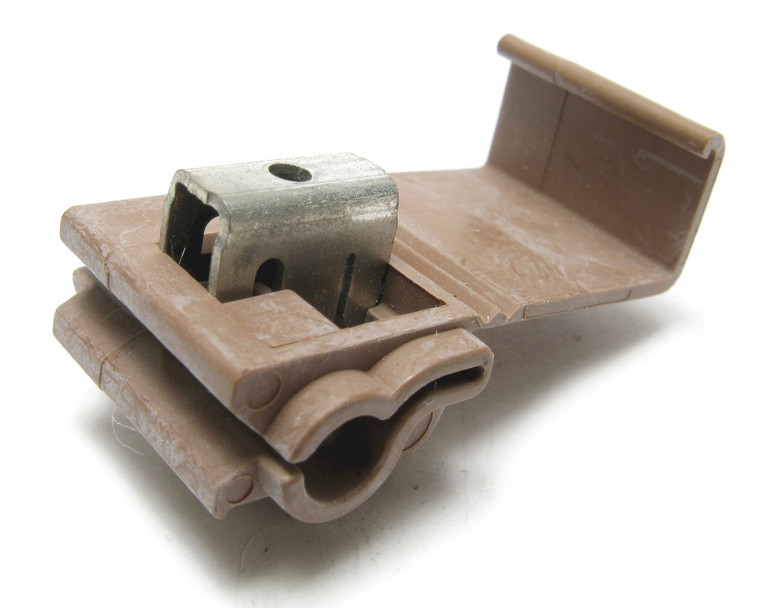

Self-Stripping Electrical Tap Connectors, 25 Piece

Self-Stripping Electrical Tap Connectors, 25 Piece

3M
SKU:
015423
Availability:
$4.95
(No reviews yet)
Width:
2.75 (in)
Height:
1.00 (in)
Depth:
5.25 (in)
Current Stock:
64
Adding to cart… The item has been added
Description
Self-Stripping Electrical Tap Connectors, 25 Piece Lot

Product Details:
Quanity: 25 Piece Lot
Wire Range:
Tap: 18-14 AWG (.75-1.5 mm2)
Run: 12-10 AWG (4.0 mm2)
Solid or Stranded Copper Conductors
For Use With Common Thermoplastic Insulated Wires Such As:
T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT
With a Maximum Insulation Diameter of: Tap 0.145 Inches, Run 0.190 Inches
Maximum Recommended Current for General Purpose Applications:
Tap: 18 Awg - 7 Amps, 16 Awg - 10 Amps, 14 Awg - 15 Amps
Run: 12 Awg - 20 Amps, 10 Awg - 25 Amps

Construction:
U-contact - Tin Plated Brass, 0.03 Inch Thick
Insulator - Polypropylene
Color - Brown
UL Listed

3M Scotchlok
567-25
