Push Switch SPST Illuminated Red 10 Amp / 120 Volt AC

SKU:
009539
$4.00
(No reviews yet)
Width:
1.00 (in)
Height:
2.00 (in)
Depth:
1.00 (in)
Current Stock:
53

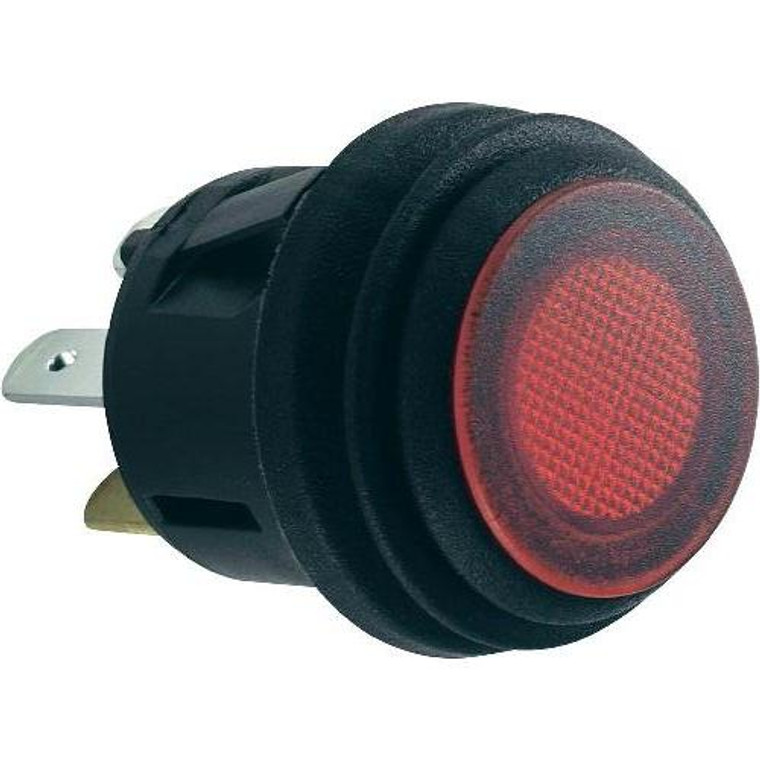

Illuminated Push Button Switch, Red, 10 Amps @ 110 Volt AC, SPST (ON/OFF)

Switch Specifications:
Rated: 10 Amps at 110 Volt AC
SPST (ON/OFF) Normally Open
Red Bulb is Illuminated when the Switch is in the ON Position
The 2 Tinned Terminals are the Switch Contacts
The Brass Terminal is the Return for the Light
Quick Connect Terminals are 0.187"
Snap in mounting design for ease of installation. Switch Cutout ~.78"
See image 2 for Switch Dimensions in Milimeters
