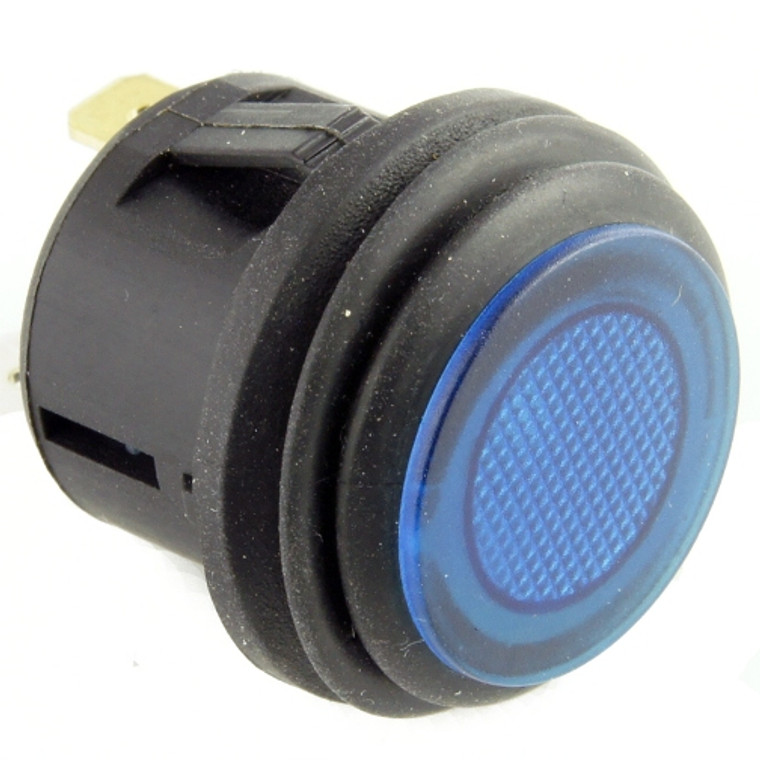

Push Switch SPST Illuminated Blue 10 Amp / 120 Volt AC
CES
$4.00
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 - 49 and get 12% off
- Buy 50 - 99 and get 15% off
- Buy 100 or above and get 20% off
(No reviews yet)
Write a Review
CES
Push Switch SPST Illuminated Blue 10 Amp / 120 Volt AC
Illuminated Push Button Switch, Blue, 10 Amps @ 110 Volt AC, SPST (ON/OFF)
Switch Specifications:
Rated: 10 Amps at 110 Volt AC
SPST (ON/OFF) Normally Open
Blue Bulb is Illuminated when the Switch is in the ON Position
The 2 Tinned Terminals are the Switch Contacts
The Brass Terminal is the Return for the Light
Quick Connect Terminals are 0.187"
Snap in mounting design for ease of installation. Switch Cutout ~.78"
See image 2 for Switch Dimensions in Milimeters
CES
66-2496
Switch Specifications:
Rated: 10 Amps at 110 Volt AC
SPST (ON/OFF) Normally Open
Blue Bulb is Illuminated when the Switch is in the ON Position
The 2 Tinned Terminals are the Switch Contacts
The Brass Terminal is the Return for the Light
Quick Connect Terminals are 0.187"
Snap in mounting design for ease of installation. Switch Cutout ~.78"
See image 2 for Switch Dimensions in Milimeters
