Push Button Switch SPST Illuminated Blue
CES
$4.00
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 - 49 and get 12% off
- Buy 50 - 99 and get 15% off
- Buy 100 or above and get 20% off
(No reviews yet)
Write a Review
CES

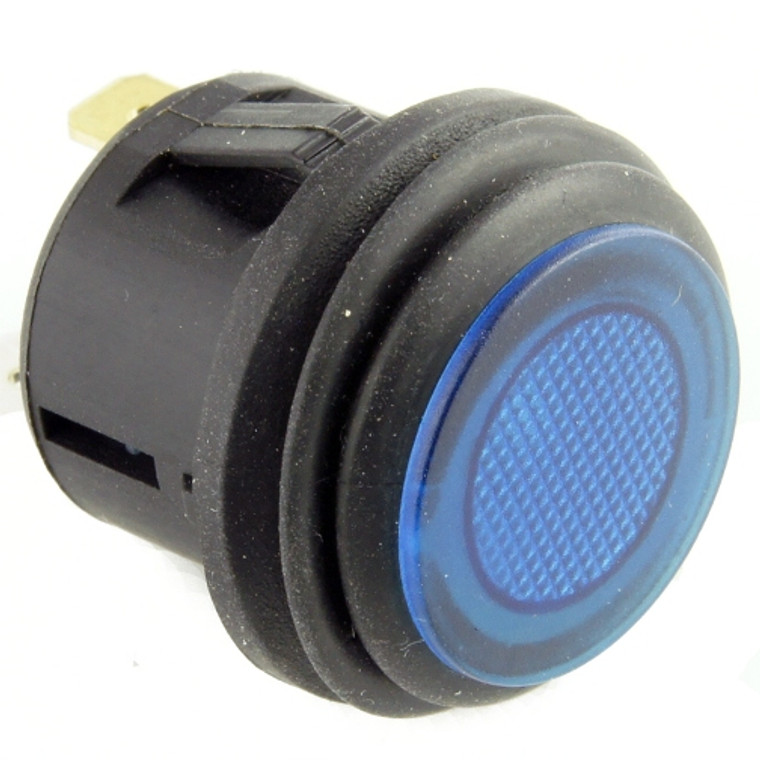

Push Button Switch SPST Illuminated Blue
Illuminated Push Button Switch, Blue, 20 Amps @ 12 Volt DC, SPST (ON/OFF)
Automotive Switch Specifications:
Rated: 20 Amps at 12 Volt DC
SPST (ON/OFF) Normally Open
Blue LED is Illuminated when the Switch is in the ON Position
The 2 Tinned Terminals are the Switch Contacts
The Brass Terminal is the Ground for the LED. (LED is Polarity Sensitive)
Quick Connect Terminals are 0.187"
Snap in mounting design for ease of installation. Switch Cutout ~.78"
See image 2 for Switch Dimensions in Milimeters
CES
66-2491
Automotive Switch Specifications:
Rated: 20 Amps at 12 Volt DC
SPST (ON/OFF) Normally Open
Blue LED is Illuminated when the Switch is in the ON Position
The 2 Tinned Terminals are the Switch Contacts
The Brass Terminal is the Ground for the LED. (LED is Polarity Sensitive)
Quick Connect Terminals are 0.187"
Snap in mounting design for ease of installation. Switch Cutout ~.78"
See image 2 for Switch Dimensions in Milimeters
CES
66-2491
