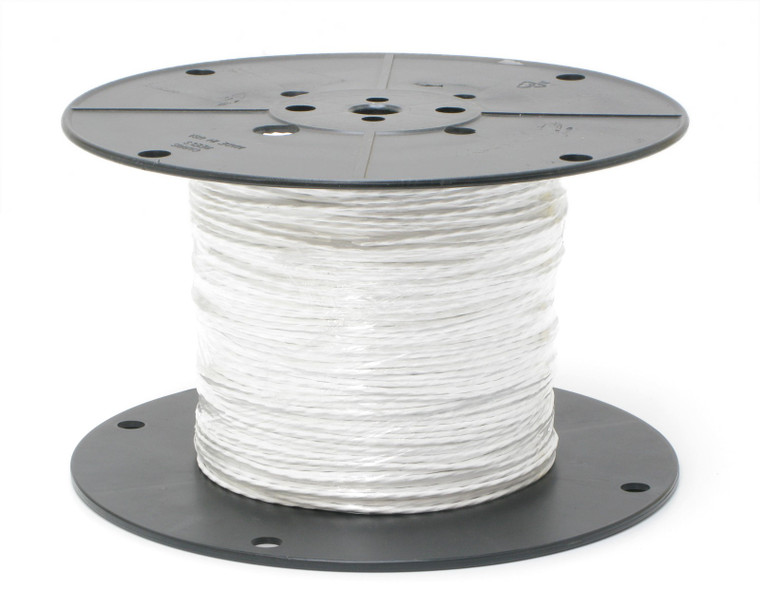

M27500-22ML2T08 22/2 Shielded Tinned Copper PVDF Insulated Wire
UNK
$0.18
(No reviews yet)
Write a Review
UNK
M27500-22ML2T08 22/2 Shielded Tinned Copper PVDF Insulated Wire
22AWG/2con Braided Shield Hookup Wire
Mil-Spec Number: M27500-22ML2T08
SAE Number: AS81044/12
Round Braided Shield, Kynar Jacketed Wire
22AWG, 2 Conductor
Stranding: 19/34 (each)
Conductor: Tin Plated Copper
Insulation: Irradiation Cross-Linked Extruded Polyalkene
Shielding: Round Braid Tinned Copper
Jacketing: Irradiation cross-linked extruded Polyvinylidene Flouride (PVDF)
600V Rating
Color: White; White w/blue stripe
Temperature Rating: 302°F (150°C) Maximum
OD: ~0.11" (2.8mm)
This wire is unused and has never been installed. Unfortunately, aircraft wire like this is often in splices. We will try to fill your order with a continuous run, but this may not always be possible.
SAE Number: AS81044/12
Round Braided Shield, Kynar Jacketed Wire
22AWG, 2 Conductor
Stranding: 19/34 (each)
Conductor: Tin Plated Copper
Insulation: Irradiation Cross-Linked Extruded Polyalkene
Shielding: Round Braid Tinned Copper
Jacketing: Irradiation cross-linked extruded Polyvinylidene Flouride (PVDF)
600V Rating
Color: White; White w/blue stripe
Temperature Rating: 302°F (150°C) Maximum
OD: ~0.11" (2.8mm)
This wire is unused and has never been installed. Unfortunately, aircraft wire like this is often in splices. We will try to fill your order with a continuous run, but this may not always be possible.
All of the wire is new and unused surplus inventory that we have acquired from various sources over the years. Skycraft Parts & Surplus does not express, imply, nor supply any Certification of Conformance (CoC) or traceability for any wire.
