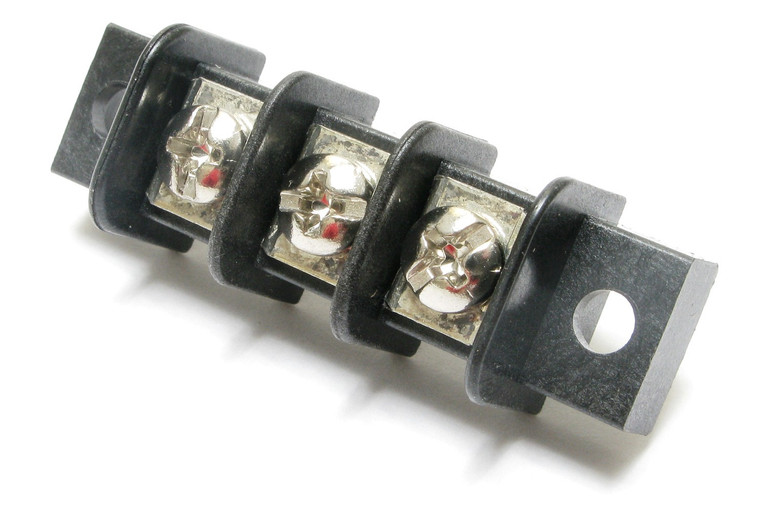

Low Profile Feedthru Barrier Strip, 3 Position
Molex Beau
$0.60
(No reviews yet)
Write a Review
Molex Beau
Low Profile Feedthru Barrier Strip, 3 Position
Low Profile Feedthru Barrier Strip, 3 Position
Product Details:
Construction: Thermoplastic Base (Feed-Thru)
Terminal Style:Solder Turret
Terminal Centers: 0.375"
Current Rating: 20 Amps
Voltage Rating: 150 Volt
Material: Thermoplastic, (Color Back)
Top Hardware: 6/32 Brass, Phillips/Slotted Screw
Number of Terminals: 3 Position
Overall Length: 1.8"
Mounting Holes Center to Center Length: 1.5"
Mounting Hole Size: 0.156"
Height Including Terminal: 0.85"
Base Height: 0.5"
Base Width: 0.47" to 0.63"
Wire Range 12 to 24 Gauge
UL Flame Retardant Rating 94V-0
UL Recognized, CSA Approved|
Beau
Series 71
71603-E-V-49
Product Details:
Construction: Thermoplastic Base (Feed-Thru)
Terminal Style:Solder Turret
Terminal Centers: 0.375"
Current Rating: 20 Amps
Voltage Rating: 150 Volt
Material: Thermoplastic, (Color Back)
Top Hardware: 6/32 Brass, Phillips/Slotted Screw
Number of Terminals: 3 Position
Overall Length: 1.8"
Mounting Holes Center to Center Length: 1.5"
Mounting Hole Size: 0.156"
Height Including Terminal: 0.85"
Base Height: 0.5"
Base Width: 0.47" to 0.63"
Wire Range 12 to 24 Gauge
UL Flame Retardant Rating 94V-0
UL Recognized, CSA Approved|
Beau
Series 71
71603-E-V-49
