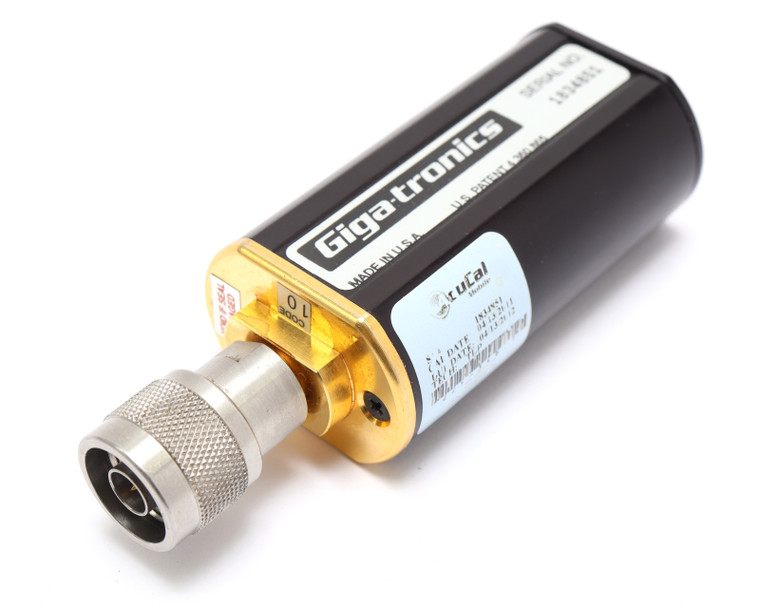

Gigatronics 80701A Modulated Power Sensor, -64 to +20 dBm, 50MHz - 18GHz

Gigatronics 80701A Modulated Power Sensor, -64 to +20 dBm, 50MHz - 18GHz

Giga-tronics
SKU:
027299
$49.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Gigatronics 80701A Modulated Power Sensor, -64 to +20 dBm, 50MHz - 18GHz

Condition:
* Used, unable to test. Sold as-is or for parts.

Additional Notes:
* Max. Power Level: +23 dBm (200mW)
* Connector: Type N Male
* Impedance: 50Ω
* Dimensions (LxD): 4.72" x 1.06" (120mm x 27mm)
*VSWR:
     • 1.12: 0.01 - 2 GHz
     • 1.22: 2 - 12.4 GHz
     • 1.29: 12.4 - 18 GHz
* CW Power Level: -64 to +20 dBM
* Amplitude Modulation Rate, Power Range: fm≤ 10 MHz, -60 to +20 dBM
* Two-Tone Max. Separation Between Carriers:
     • ≤ 10 MHz, -60 to +20 dBm
     • > 10 MHz, -60 to -20 dBm
* Pulse Modulation: > 100µs Pulse Width
* Burst with Modulation:
     • fm ≤ 10 MHz, > 100µs; pulse width: -30 to +20 dBm
     • fm > 10 MHz, > 100µs; pulse width: -30 to -20 dBm


Gigatronics
80701A
