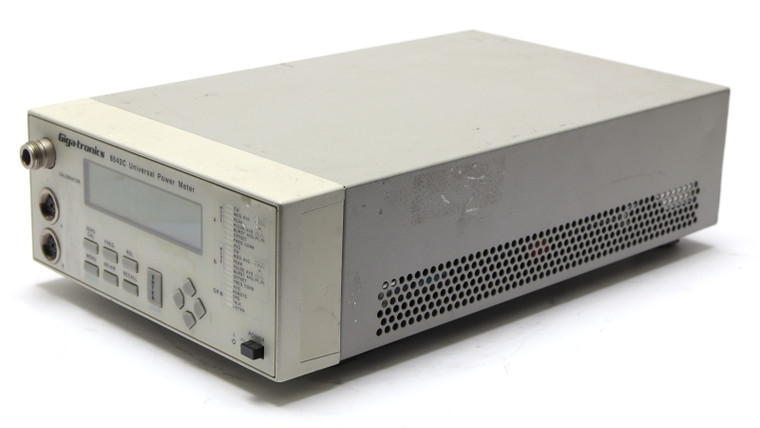

Gigatronics 8542C Universal Power Meter

Gigatronics 8542C Universal Power Meter

SKU:
027059
$159.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Gigatronics 8542C Universal Power Meter

Condition:
* Used, Appears to function. Passes self test, unable to test further.
* Sold as-is. As pictured.

Additional Notes:
* Frequency Range 100 kHz to 40 GHz, depending on sensor used
* Power Range: -70 to +47 dBm, depending on sensor used
* Choose from an extensive line of CW, Peak, Modulation and True RMS sensors
* Single Sensor Dynamic Range:
       • CW Power Sensors: 90 dB (-70 to +20 dBm)
       • Modulation Power Sensors: 87 dB CW, 60 to 80 dB Modulation Mode
       • Peak Power Sensors: 50 dB CW, 47 dB Peak
* Linearity: ± 0.02 dB
* Automatically measure average power of TDMA, GSM, and CDMA signals
* Optional Time Gating to program a measurement's start time and duration
* Achieve 500 reading per second over GPIB
* Use the Fast Buffered Mode to capture up to 4000 readings per second
* Measure the instantaneous peak power level of a pulse modulated signal

Gigatronics
8542C
