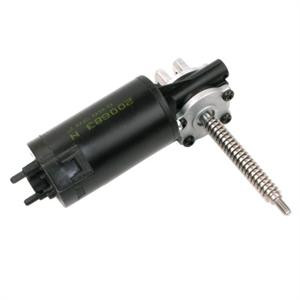

Gear-head Motor 12 Volt DC Worm-Gear DriveUNK
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 25 - 49 and get 15% off
- Buy 50 - 99 and get 30% off
- Buy 100 - 499 and get 35% off
- Buy 500 or above and get 40% off
Powerful right-angle, worm-gear drive motor. Designed for power seat adjustment in automobiles.
The final drive mechanism rotates inside of the housing on the front of the motor and requires a 4mm square shaft
4mm square shaft not included.
Motor body is 3.5" max width including connector x 2.5" max height x 5.5" long including gear head.
Mounting flange at gear end of motor has two holes on 2.25" centers.
Power terminals are inside a plastic connector body on one side of the motor.
No load specs:
550 RPM at 12 Volt DC, 2.5 Amp
