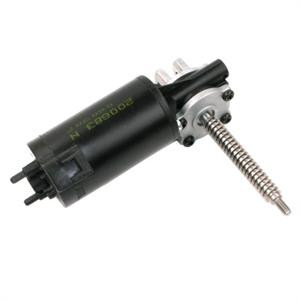

Gear Head DC Motor 12Vdc - Worm drive Left-Hand Configuration

SKU:
003635
|
UPC:
0799632703303
$14.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 - 49 and get 15% off
  • Buy 50 - 99 and get 20% off
  • Buy 100 or above and get 25% off
(No reviews yet)
Current Stock:
321

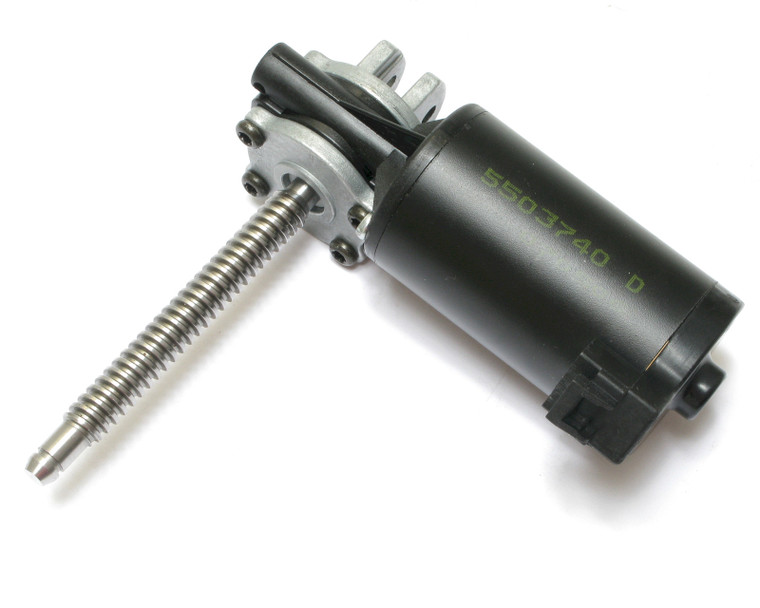

12 Volt DC Left-Angle Gear Head Motor with Worm Drive

Designed for power seat adjustment in automobiles (Specifically Daewoo)
Heavy gauge U-bracket on back of gearhead, 1/4" holes with 7mm spacing.
RPM: No-load rating: 190 RPM @ 12 Volt DC / 1.5 Amp.

Dimensions:
Motor: Overall length, 144mm (5.66"); Diameter 49mm (1.91")
Worm Shaft: 12mm diameter is 89mm (4") long
Thread: 7/16"-8 (right-hand twist)
The last 15.2mm of the shaft has a 10mm diameter with a slot for a clip
Power Termination: Packard 12064750 Connector (3/16" quick-connect terminals); Accepts Packard 12064749 Connector

Daewoo
070506; 5503740 D
