Flowline DL-10-01 Ultrasonic Level Sensor Transmitter

Flowline DL-10-01 Ultrasonic Level Sensor Transmitter

SKU:
025132
$275.00
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

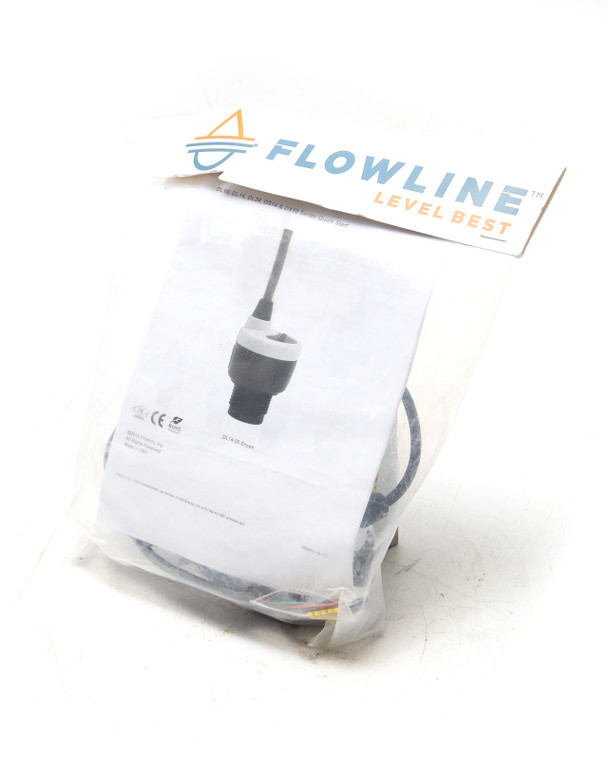

Flowline DL-10-01 Ultrasonic Level Sensor Transmitter

Condition:
* New surplus stock, in OEM packaging. As pictured.

Additional Notes:
* Display: No
* Cable Length: 4 ft
* Sensing Type: Ultrasonic
* Supply Voltage (Nominal): 24 VDC
* Supply Voltage: 24 VDC, 25 mA
* Accuracy: ±0.125" (3 mm)
* Signal Output: 4-20 mA @ 400 O (loop powered)
* Measurement Range: 2" to 49.2" (50.8 to 1.25 m)
* Memory: Non-volatile
* Deadband: 2" (5.1 cm)
* Operating Pressure: 30 psig (206.9 kPa)
* Process Temperature: 20° to 140°F (-7° to 60°C)
* Beam Width: 2" (5.1 cm)
* Fail Safe: Signal 4 mA, 20 mA, 21 mA, 22 mA, or hold last signal
* Resolution: 0.019" (0.5 mm)
* Temperature Compensation: Automatic
* Process Connection: 1" NPT
* Cable Length: 48" (1.2 m)
* Operating Temperature: -31° to 140°F (-35° to 60°C)
* Enclosure Rating: Polycarbonate, NEMA 6P
* Dimensions: 3.2"H x 2.0"W x 2.0"D (8.1 x 5.1 x 5.1 cm)

Flowline
DL-10-01
