Doppler RADAR Motion Sensor 3.2GHz

Doppler RADAR Motion Sensor 3.2GHz

SKU:
025810
$1.95
(No reviews yet)
Current Stock:
5
Adding to cart… The item has been added
Description

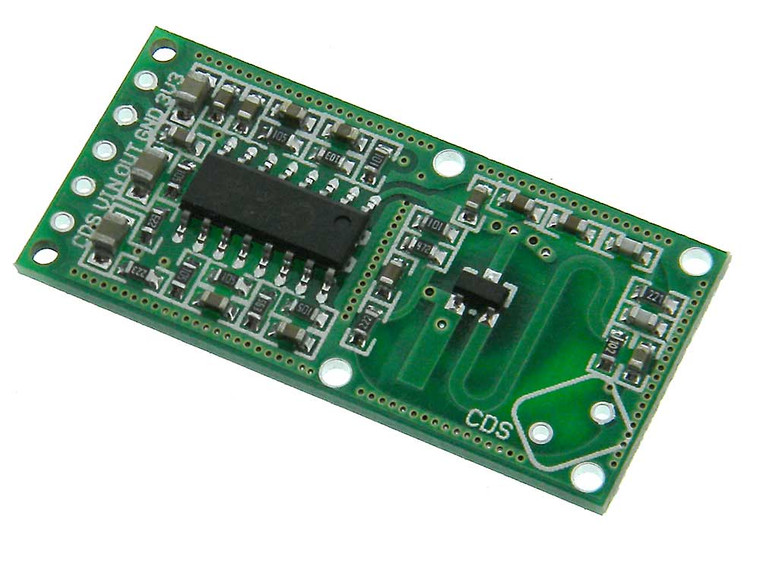

Doppler RADAR Motion Sensor 3.2GHz

Additional Notes:
* Doppler RADAR module using the RCWL-9196 chip that supports repeat trigger, and 360 degree detection area with no blind spot. * Best sensitivity is component side.
* Supports: Output On/Off
* Adjustable repeat trigger time and detecting distance by
* add the SMD components to the corresponding Pads
* Power: 4-28VDC @ <3mA
* Detection Range: ~5-9m
* Frequency: ~ 3.2GHz
* Transmitting Power: 20mW (typical); 30mW (max)
* Output Level: ~3.4V High <0.7 Low
* Output Drive: ~100mA
* Output Timing: ~2sec Retrigger with motion
* Operating Temperature: -20~80 celsius
* Storage Temperature: -40~100 celsius
* Terminals: 0.1 Pitch solder holes
* L: 1-3/8” W: 13/16” H: 3/16”

Datasheet
Schematic
