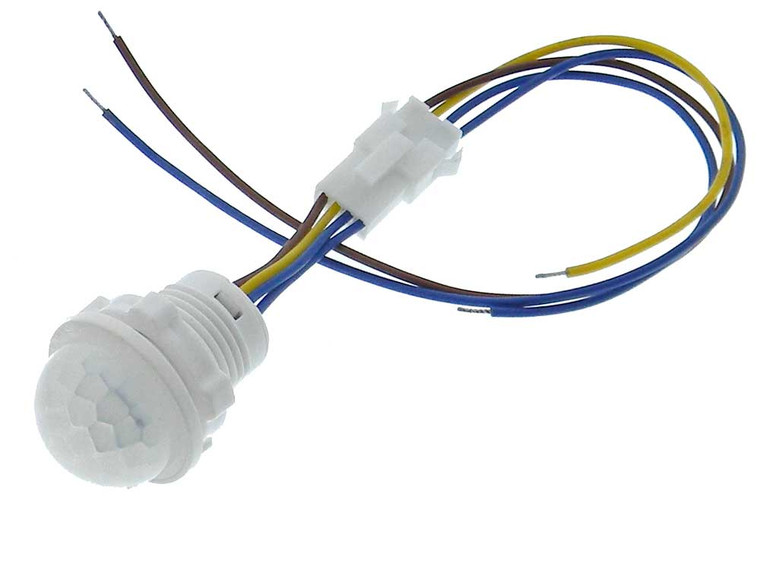

110Vac PIR Infrared Motion Sensor, Switch

Additional Notes:
* General use PIR motion detector designed for human body detection with ambient light detection.
* Brown: Line Input
* Short Yellow: Load Line Out
* Short Blue: Load Neutral
* Long Blue: Neutral Line In
* NOTE: Long & Short BLUE Leads are connected Internally
* Power: 100 to 240VAC 50/60Hz.
* Output power: 40W, ~2A/4A surge (SCR Output)
* Photosensing Setting: 3 Lux
* Sensing Distance: 4-6m
* Time Delay: 40secs On Fixed
* Angle Coverage: 110°
* Temperature Using: -10° to +45°C
* Standby power consumption: <0.1W
* Body Leads: ~ 1-1/4"
* Pigtail Leads: Power: ~7" Line/ ~4" Load:
* Mounts in 20mm Hole
* Overall Dimensions (Dia x L): 28mm x 36mm
