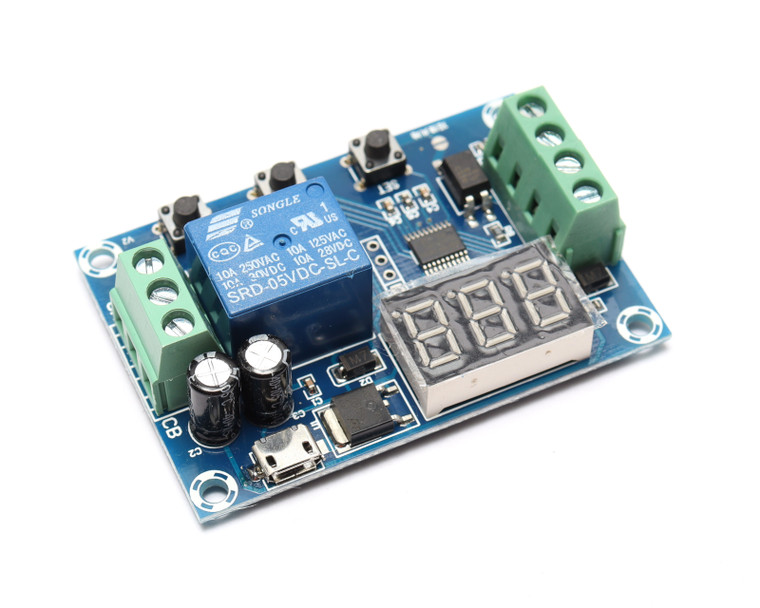

Digital Control Delay Module

Digital Control Delay Module

Additional Notes:
* Micro processor based Multi Mode Triggered Relay with 3digit Red LED Display.
* Power: 6-30VDC or 5V USB
* Trigger: Opto-coupled 3-24V Rising Edge
* Timing Range: 1sec to 999min.
* Relay: SPDT
* Contacts: 10A @ 125/250VAC/ 28VDC
* Connections: Terminal Strip
* USB Micro B Jack (5V Power)
