Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control, 12V DC, 500A

Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control, 12V DC, 500A

Blue Sea Systems
SKU:
021534
$134.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

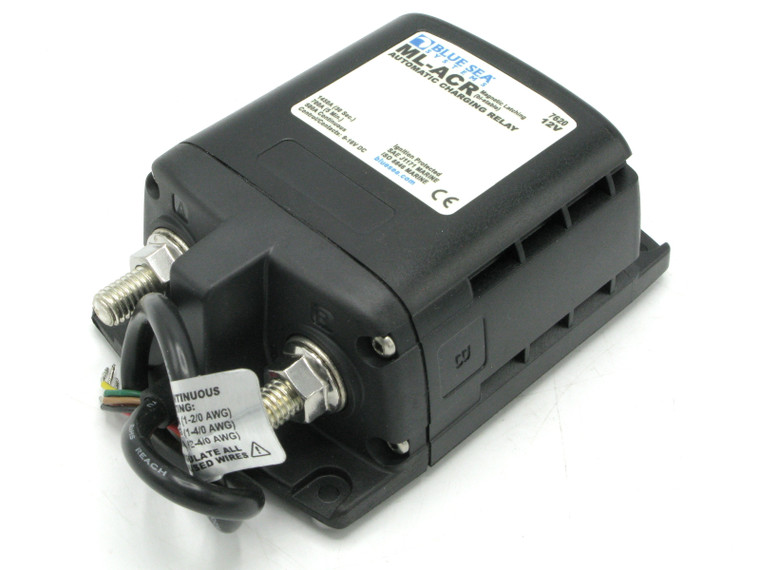

Blue Sea Systems ML-ACR Automatic Charging Relay With Manual Control, 12 Volt DC, 500 Amp

Condition:
* New, Surplus Stock. Not In OEM Packaging.
* Does Not Include Rocker Switch.

Additional Notes:
* Does Not Include Rocker Switch
* Control Circuit Connection: Tinned wires
* Nominal Voltage 12 Volt DC
* Manual Control: Yes
* Engine Isolation: Yes
* Mounting: #10
* Start Assist: Yes
* Start Isolation: Yes
* Amperage Operating Current: 13mA
* Average Operating Current when Changing State: <7.0A
* Terminal Stud Torque: 140in-lb (15.82Nm)
* Continuous Rating: 500 Amp
* Intermittent Rating: 700 Amp (5 Min)
* Cranking Rating 30 Sec: 1450 Amp DC
* Operating Temperature: -10°C to 60°C
* Cable Size to Meet Ratings: 4/0 AWG x 2
* Live Current Switching: 300 Amp @ 12 Volt DC
* Stud Material: Tinned Copper
* Switching Cycles: 100000
* Terminal Ring Diameter Clearance: 1.12" (28.45mm)
* Terminal Stud Length: 1.50" (38.1mm)
* Terminal Stud Size: 3/8" - 16 (M10)
* Wire Size: 20 AWG
