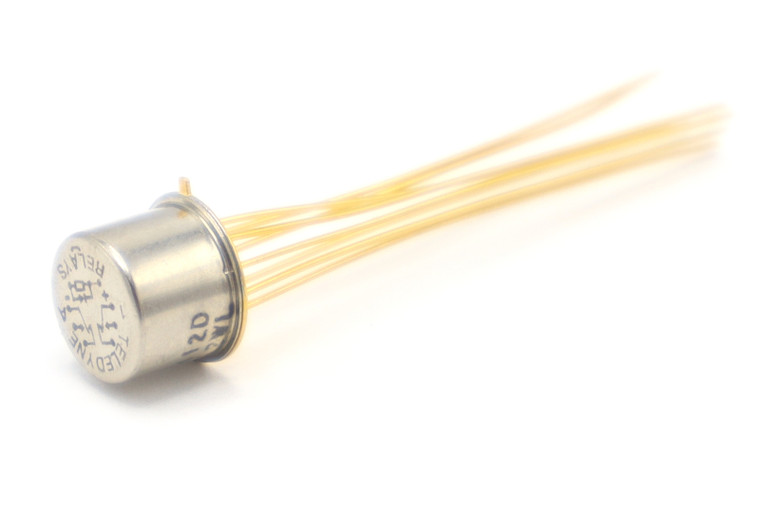

Teledyne ISCO M39016/15-003L DC Relay, 12V
Condition:
* New surplus stock, no OEM packaging. As pictured.
Additional Notes:
* Contact Arrangement: 2 Form C (DPDT)
* Rated Duty: Continuous
* Contact Resistance: 0.1 ohm max. before life; 0.2 ohm max. after life at 1A/28Vdc (measured 1/8" from header)
* Contact Load Ratings (DC):
• Resistive:1 Amp/28Vdc
• Inductive:200 mA/28Vdc (320 mH)
• Lamp:100 mA/28Vdc
• Low Level:10 to 50 μA/10 to 50mV
* Contact Load Ratings (AC): Resistive: 250 mA/115Vac, 60 and 400 Hz (Case not grounded)100 mA/115Vac, 60 and 400 Hz (Case grounded)
* Contact Overload Rating: 2A/28Vdc Resistive (100 cycles min.)
* Contact Carry Rating: Contact factory
* Coil Operating Power: 450 milliwatts typical at nominal rated voltage @ 25°C
Teledyne ISCO
M39016/15-003L
