Berkeley Nucleonics Model 6040 Universal Pulse Generator, 100MHz w/155M-3 Module

Berkeley Nucleonics Model 6040 Universal Pulse Generator, 100MHz w/155M-3 Module

Condition:
* Used. Powers On, All Buttons Trigger Associated Function On Panel.
* Sold As-Is; Unable To Fully Test.
* 155M-3 Module does not appear to have a laser emmiter.

Additional Notes:
* Internal Rep Rate Generator:
     • Range: 0.01 Hz to 100 MHz
     • Accuracy: 0.01 %
* Pulse Width:
     • 3 ns To 640 Secs, Resolution Of 1 ns or 5 Digits,
     • Accuracy 0.2 %
     • Jitter 25 ps (typ)
* Delay:
     • 0 ns To 640 Secs, Resolution of 1 ns or 5 Digits,
     • Accuracy 0.2 %
     • Jitter 25 ps (typ)
* Trig Out: 3 ns Wide, 2V High T0 Pulse Into 50 Ω.
* Pulse Out: +4V Pulse Into 50 Ω (typ)
* Transition Time:
     • 1 ns Rise Time
     • 1.5 ns Fall Time
* ECL Out:
     • An ECL Level Output into 50 Ω.
     • 700 ps Rise Time (typ)
* External Trigger:
     • 0 to 100 MHz,
     • User-Selectable Slope And Threshold Settings
     • 50 Ω Input Impedance.

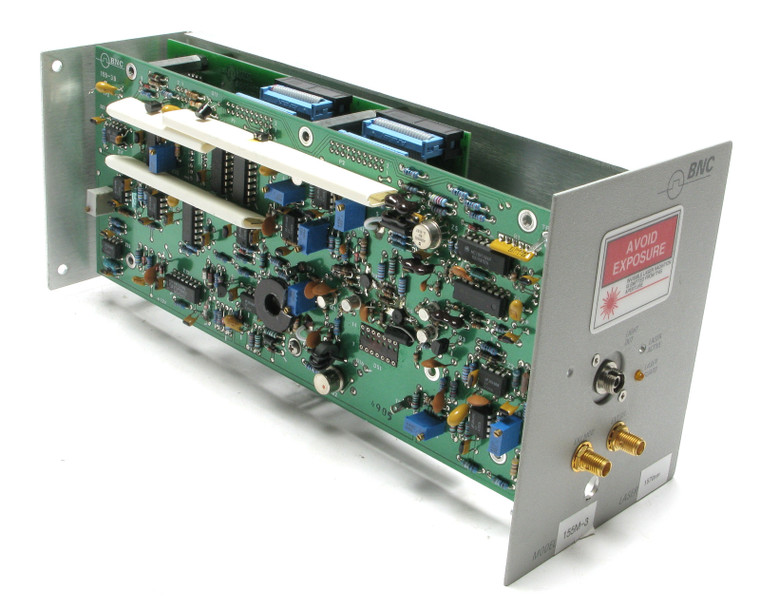

* 155M-3 Module:
     • Wavelength: 1550nm

Berkeley Nucleonics
Model 6040
Model 155M-3
