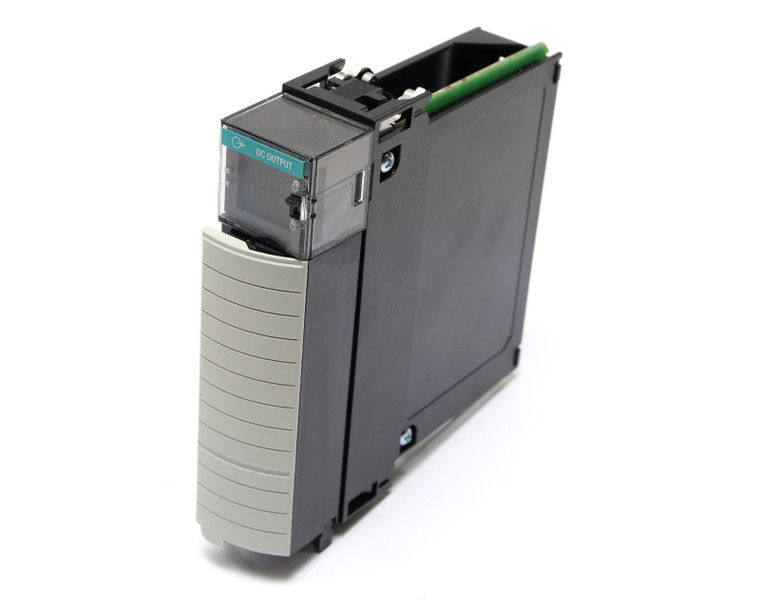

Allen-Bradley 1756-OB16I Isoloated DC Output Module

Allen-Bradley 1756-OB16I Isoloated DC Output Module

Allen Bradley
SKU:
024269
$69.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Allen-Bradley 1756-OB16I, Isoloated DC Output Module

Condition:
* Used, Like New. Used As Demo Unit.

Additional Notes:
* Series: ControlLogix
* Outputs: 16-Point Individually Isolated
* Module Type: Isoloated DC Output Module
* Voltage: 12-24 Volts DC Sink-Source
* Operating Voltage Range: 10-30 Volts DC
* Output Delay Time (OFF To ON): 1 ms Max
* Output Delay Time (ON To OFF): 2 ms Max
* Current per Point: 2 Amp @ 30°C (86°F) 1 Amp @ 60°C (140°F) (Linear Derating)
* Current per Module: 8 Amp @ 30°C (86°F) 4 Amp @ 60°C (140°F) (Linear Derating)
* Maximum Output Current Rating-Point: 2 Amps at 30°C, 1 Amp at 60°C
* Maximum Output Current Rating-Module: 8 Amps at 30°C and 4 Amps at 60°C
* Power Dissipation (Max): 3.6 Watts at 60°C
* UPC: 10612598164544
* Backplane Current at 5 Volts: 350 milliamps
* Backplane Current at 24 Volts: 3 milliamps
* Removeable Terminal Block(s): 1756-TBCH, 1756-TBS6H
* Isolation Voltage: 50 Volts Continuous
* Enclosure: None

Allen-Bradley
1756-OB16I
