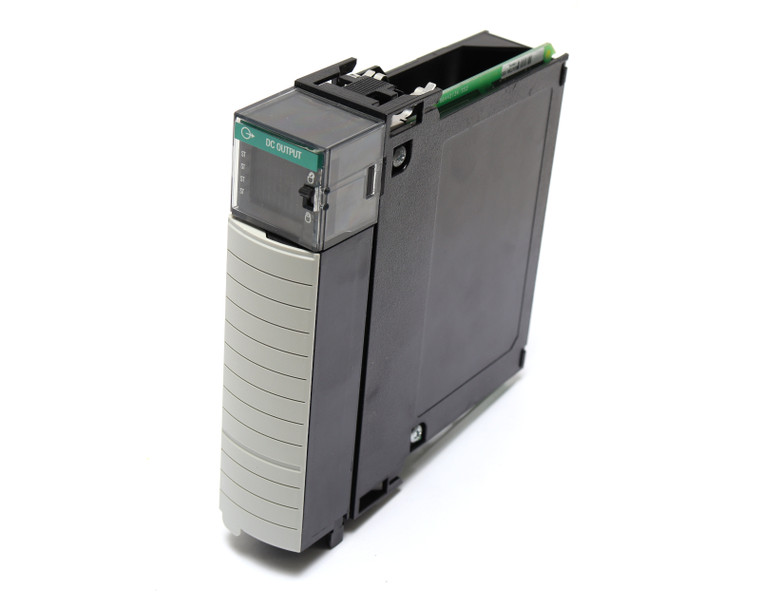

Allen-Bradley 1756-OB32/A DC Output Module

Allen-Bradley 1756-OB32/A, DC Output Module

Condition:
* Used, Like New. Used As Demo Unit.

Additional Notes:
* Series: ControlLogix
* Outputs: 32-Point
* Module Type: DC Output Module
* Voltage: 12-24 Volts DC Source
* Operating Voltage Range: 10-31.2 Volts DC
* Output Delay Time, OFF To ON: 60 µs nom/1 ms Max
* Output Delay Time, ON To OFF: 200 µs nom/1 ms Max
* Current per Point: 0.5 Amp @ 50°C (122°F) Linear Derating 0.35 Amp @ 60°C (140°F)
* Current per Module: 16 Amp @ 50°C (122°F) Linear Derating 10 Amp @ 60°C (140°F)
* Maximum Output Current Rating-Point: 0.5 Amps at 50°C, 0.35 Amps at 60°C
* Maximum Output Current Rating-Module: 16 Amps at 50°C, 10 Amps at 60°C
* UPC: 10662468702994
* Power Dissipation (Max): 4.8 Watts at 60°C
* Backplane Current at 5 Volts: 300 milliamps
* Removeable Terminal Block(s): 1756-TBCH, 1756-TBS6H
* Isolation Voltage: 50 Volts Continuous
* Enclosure: None

Allen-Bradley
1756-OB32/A
